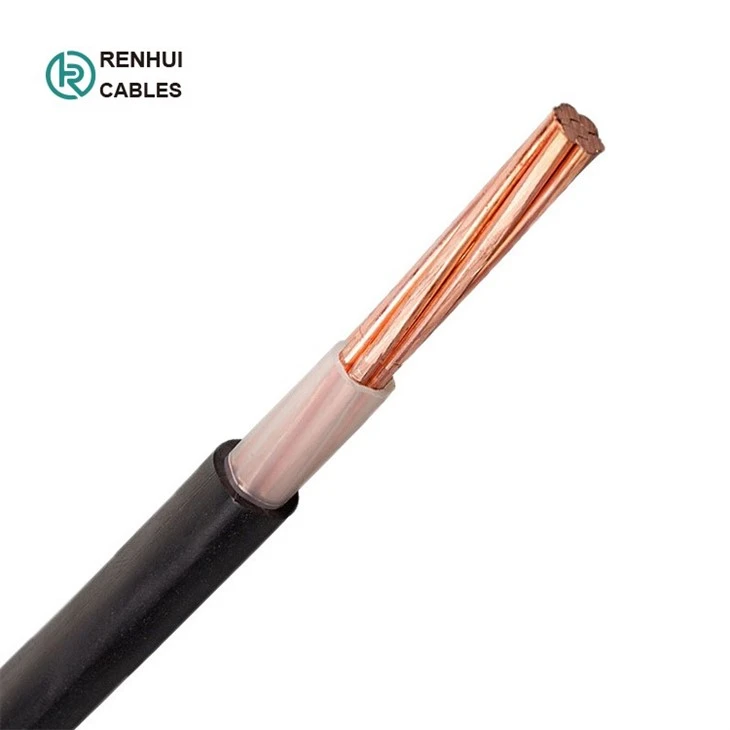

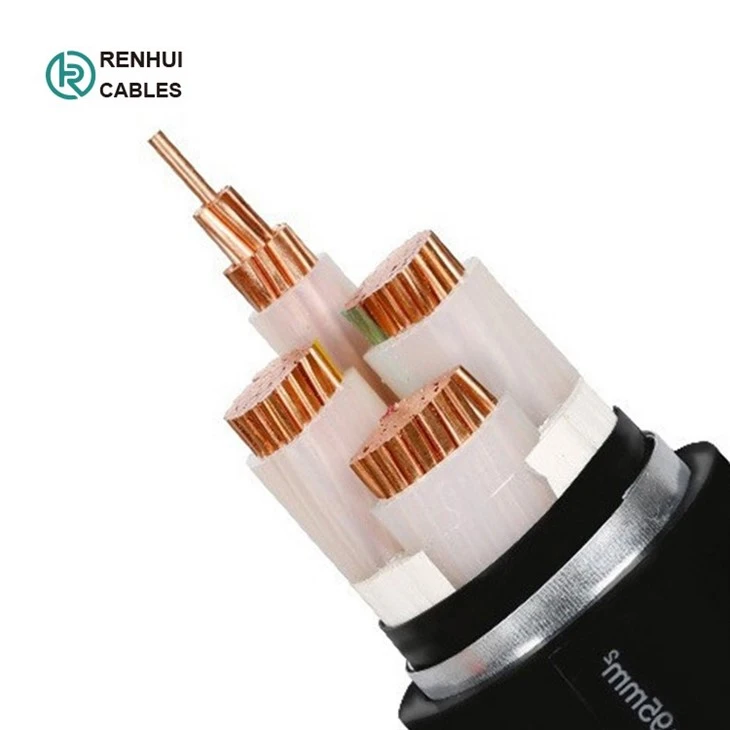

YJV YJV22 YJV32 YJV72 NYY NYM N2XY N2XSY Low Voltage Cable
Standards
The power cable is manufactured according to IEC 60502-1:2004.
It is suitable to be laid in the power cable line with rated voltage of 0.6/1kv (U0/U) for power transmission.
Application
Laid indoors, in tunnels and in pipes.
Able to withstand certain laying traction.
Not able to withstand mechanical external forces.
Single core cable is not allowed to be laid in magnetic made of material pipes .
 |
 |
 |
Operation Characteristic
1.The maximum rated temperature
When the cable is used for a long time, the maximum working temperature of the core does not exceed 900C, and the temperature of conductor shall not exceed 2500C at short circuit for 5 seconds.
2.Installation requirement
The installation of cables is not limited by the difference of elevation along the route.The ambient temperature should not be less than 00C during installation.The permissible bending radius for cable shall be complied with the following regulations:
For single core: 20(D+d) +/_ 5%
For multi-core: 15(D+d) +/_ 5%
(D--actual outer diameter of the cable; d--actual outer diameter of the conductor )
Single core cable of using in AC circuit shall be without armor or use non-magnetic metal material armor and shall not be laid in magnetic ducts.
Product Parameter
| Model | Specification | Conductor Weight |
Main Conductor | ||||
| Number of cores |
Copper wire diameter |
Number of copper wire |
Weight | Outer diameter |
|||
| ZC-YJV22 | 1*1.5 | 0.013296882 | 1 | 1.38 | 1 | 0.013296882 | 1.38 |
| ZC-YJV22 | 1*2.5 | 0.02162803 | 1 | 1.76 | 1 | 0.02162803 | 1.76 |
| ZC-YJV22 | 1*4 | 0.034411023 | 1 | 2.22 | 1 | 0.034411023 | 2.24 |
| ZC-YJV22 | 1*6 | 0.053187527 | 1 | 2.76 | 1 | 0.053187527 | 2.76 |
| ZC-YJV22 | 1*10 | 0.087760537 | 1 | 1.34 | 7 | 0.087760537 | 4.02 |
| ZC-YJV22 | 1*16 | 0.137945723 | 1 | 1.68 | 7 | 0.137945723 | 5.04 |
| ZC-YJV22 | 1*25 | 0.219665269 | 1 | 2.12 | 7 | 0.219665269 | 6.36 |
| ZC-YJV22 | 1*35 | 0.30060281 | 1 | 2.48 | 7 | 0.30060281 | 7.44 |
| ZC-YJV22 | 1*50 | 0.443396965 | 1 | 2.52 | 10 | 0.443396965 | 8.94 |
| ZC-YJV22 | 1*70 | 0.620755752 | 1 | 2.52 | 14 | 0.620755752 | 10.61 |
| ZC-YJV22 | 1*95 | 0.842454234 | 1 | 2.52 | 19 | 0.842454234 | 12.2 |
| ZC-YJV22 | 1*120 | 1.064152717 | 1 | 2.52 | 24 | 1.064152717 | 13.7 |
| ZC-YJV22 | 1*150 | 1.330190896 | 1 | 2.52 | 30 | 1.330190896 | 15.3 |
| ZC-YJV22 | 1*185 | 1.640568772 | 1 | 2.52 | 37 | 1.640568772 | 17 |
| ZC-YJV22 | 1*240 | 2.128305434 | 1 | 2.52 | 48 | 2.128305434 | 19.4 |
| ZC-YJV22 | 1*300 | 2.660381792 | 1 | 2.52 | 60 | 2.660381792 | 21.7 |
Production Progress
Certificates:
 |
 |
Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
