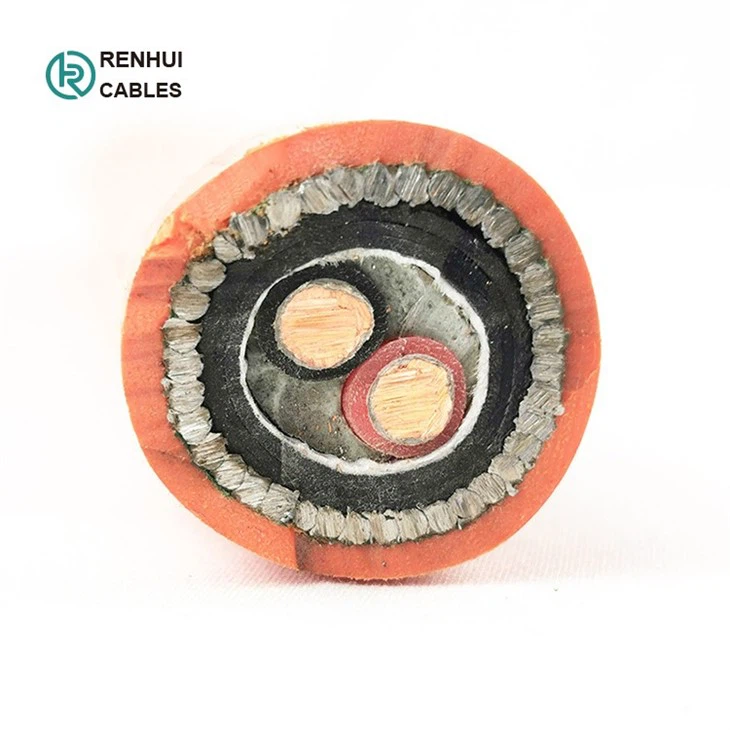

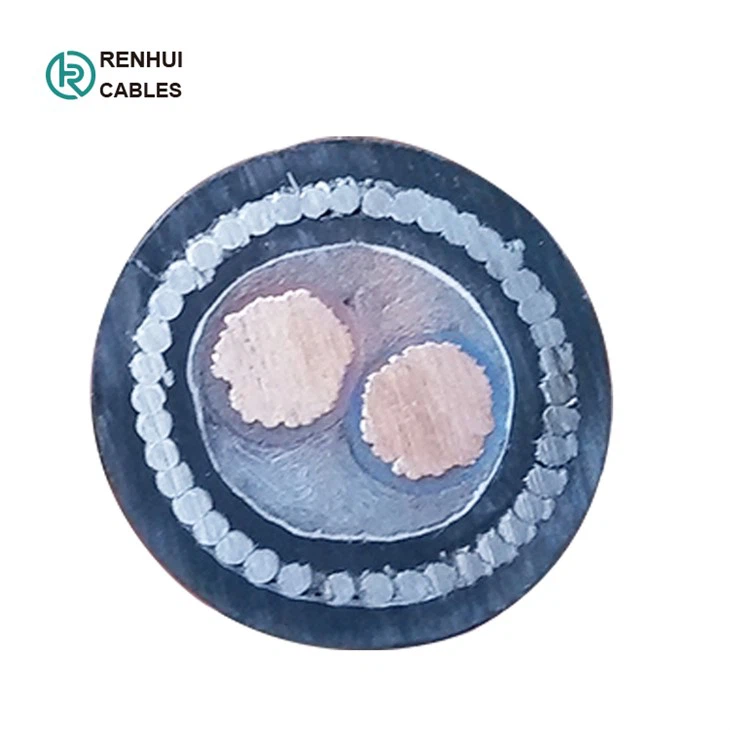

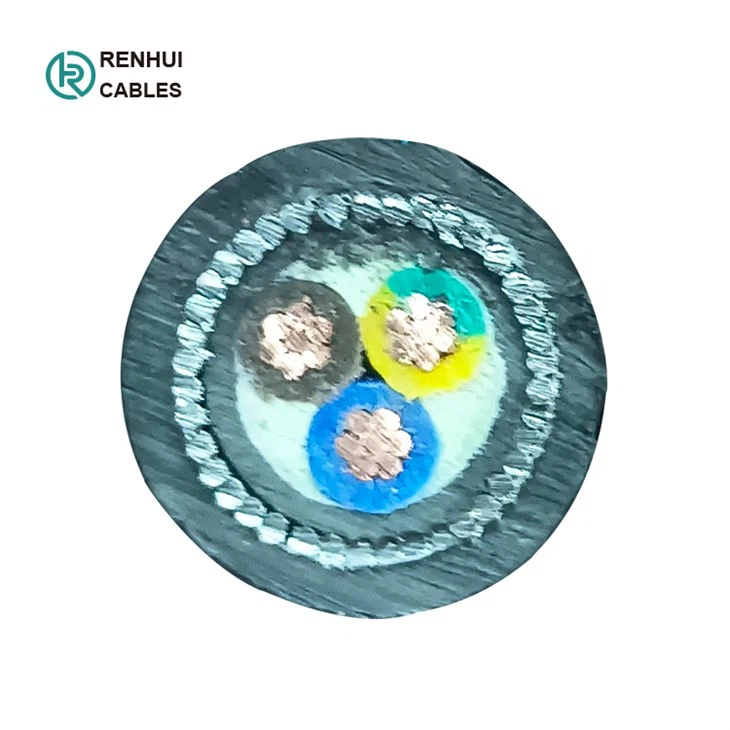

1000V Insulated Cable
Application
Suitable for installations indoors: mostly in power supply stations and outdoors: in cable ducts, underground, and on cable trays for industries, switch-boards and power stations. Due to the good laying and mechanical characteristics, this cable is suitable when mechanical protection is required or in applications where mechanical damages are expected to occur.
 |
 |
 |
Standards
The power cable is manufactured according to IEC 60502-1:2004.
It is suitable to be laid in the power cable line with rated voltage of 0.6/1kv (U0/U) for power transmission.
 |
 |
XLPE cable specification
|
Model |
Name |
Application site |
Section area |
Cores |
Rate voltag |
|
YJV |
XLPE insulated PVC sheathed power cable |
Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed . |
4 6 10 16 25 35 50
70 95 120 150 185
240 300 400 |
1 2 3 4 5 3+1 3+2 4+1 |
0.6/1KV |
|
YJLV |
XLPE insulated PVC sheathed power cable |
||||
|
YJY |
XLPE insulated PE sheathed power cable |
||||
|
YJLY |
XLPE insulated PE sheathed power cable |
||||
|
YJV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull. |
|||
|
YJLV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
||||
|
YJV23 |
XLPE insulated steel tape armored PE sheathed power cable |
||||
|
YJLV23 |
XLPE insulated steel tape armored PE sheathed power cable |
||||
|
YJV32 |
XLPE insulated, steel wire armored PVC sheathed power cable |
Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension. |
|||
|
YJLV32 |
XLPE insulated, steel wire armored PVC sheathed power cable |
||||
|
YJV33 |
XLPE insulated, steel wire armored PE sheathed power cable |
||||
|
YJLV33 |
XLPE insulated, steel wire armored PE sheathed power cable |
| Part Number | Cross Section | Stranding | Approx Weight | Approx Overall Diameter | Gland Size | Single Cleat | Nom. Max. DC-resist conductor 20° C | Current rating laid direct |
| (mm²) | (mm) | KG/KM | (mm) | (mm) | (Ohm/km) | (Amp) | ||
| SWAPVC4X1.5 | 4 x 1.5 | 7/0.53 | 351 | 12.88 | 20s | 0.5 | 12.1 | 32 |
| SWAPVC4X2.5 | 4 x 2.5 | 7/0.67 | 429 | 14.43 | 20s | 0.6 | 7.41 | 42 |
| SWAPVC4X4.0 | 4 x 4.0 | 7/0.85 | 538 | 16.87 | 20 | 0.6 | 4.61 | 55 |
| SWAPVC4X6.0 | 4 x 6.0 | 7/1.04 | 670 | 17.87 | 20 | 0.7 | 3.08 | 69 |
| SWAPVC4X10 | 4 x 10 | 7/1.35 | 998 | 20.1 | 25 | 0.8 | 1.83 | 92 |
| SWAPVC4X16 | 4 x 16 | 7/1.70 | 1,272 | 22.4 | 25 | 0.9 | 1.15 | 119 |
| SWAPVC4X25 | 4 x 25 | 7/2.14 | 1,940 | 27 | 32 | 1 | 0.727 | 152 |
| SWAPVC4X35 | 4 x 35 | 7/2.52 | 2,390 | 30.1 | 32 | 1.2 | 0.524 | 182 |
| SWAPVC4X50 | 4 x 50 | 19/1.78 | 2,925 | 31.5 | 32 | 1.4 | 0.387 | 217 |
| SWAPVC4X70 | 4 x 70 | 19/2.14 | 4,200 | 37.4 | 40 | 1.6 | 0.268 | 266 |
| SWAPVC4X95 | 4 x 95 | 19/2.52 | 5,355 | 40.9 | 50s | 1.8 | 0.193 | 319 |
| SWAPVC4X120 | 4 x 120 | 37/2.03 | 6,925 | 46.6 | 50 | 2 | 0.153 | 363 |
| SWAPVC4X150 | 4 x 150 | 37/2.25 | 8,200 | 50.2 | 50s | 2 | 0.124 | 406 |
| SWAPVC4X185 | 4 x 185 | 37/2.52 | 9,975 | 55.8 | 63s | TC9 | 0.0991 | 458 |
| SWAPVC4X240 | 4 x 240 | 61/2.52 | 12,700 | 62.5 | 63 | TC10 | 0.0754 | 529 |
| SWAPVC4X300 | 4 x 300 | 61/2.85 | 15,275 | 67.4 | 75s | TC11 | 0.0601 | 592 |
| SWAPVC4X400 | 4 x 400 | 61/3.20 | 19,875 | 77 | 75 | TC12 | 0.047 | 667 |
Type No. of Core Nominal cross-section
| Type | No. of Core | Nominal cross-section |
| Cu(AL)/XLPE(PVC)/PVC(PE) Cu(AL)/XLPE(PVC)/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE) |
1 | 1.5-1000 |
| Cu(AL)/XLPE(PVC)/STA/PVC(PE) Cu(AL)/XLPE(PVC)/SWA/PVC(PE) |
2,3,4,5 | 1.5-400 |
| 3+1,4+1,3+2 | 2.5-400 |
Cross-section area of neutral conductor
| Nominal cross-section | Main core | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 |
| Neutral core | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 16 | 25 | |
| Nominal cross-section | Main core | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 |
| Neutral core | 35 | 50 | 70 | 70 | 95 | 120 | 150 | 185 |
Characteristic
D.C Resistance of finished cable at 20ºC per km is not more than the following:
| Nominal cross-section mm2 | 15 | 2.5 | 4 | 6 | 10 | 16 | 25 |
| Cu core | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 |
| Al core | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.91 | 1.20 |
| Nominal cross-section mm2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Cu core | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 |
| Al core | 0.868 | 0.641 | 0.443 | 0.320 | 0.253 | 0.206 | 0.164 |
| Nominal cross-section mm2 | 240 | 300 | 400 | 500 | 630 | 800 | 1000 |
| Cu core | 0.0754 | 0.0601 | 0.0470 | 0.0366 | 0.0283 | 0.0221 | 0.0176 |
| Al core | 0.125 | 0.100 | 0.0778 | 0.0605 | 0.0469 | 0.0367 | 0.0291 |
Drawing:
Package: Export wooden drums.
