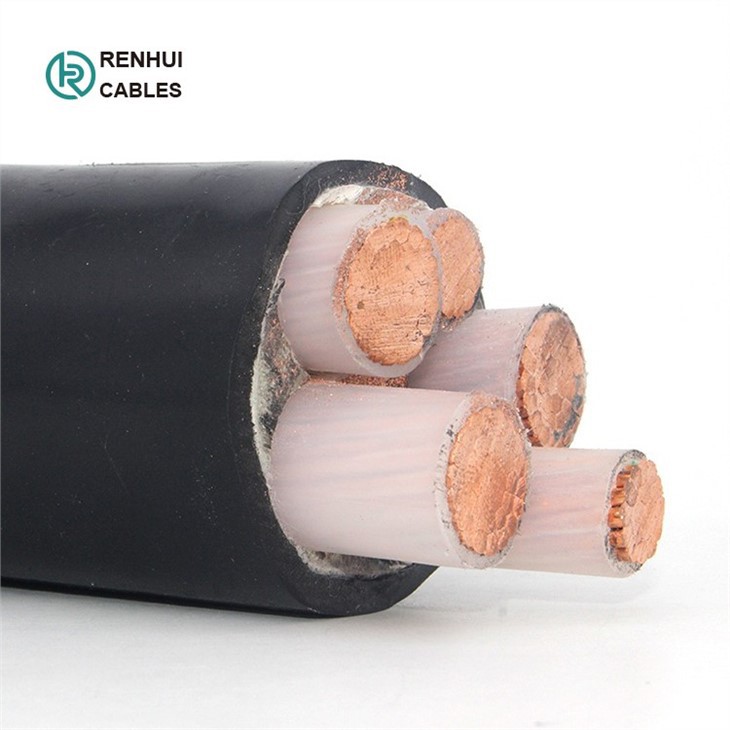

IEC60502-1 Cable
1. Application : IEC60502-1 Cable
These IEC 60502-1 cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
 |
 |
 |
2. Construction:IEC60502-1 Cable
-Conductors
Solid copper conductor Class 1, Stranded Copper conductor Class 2 to IEC 60228, BS EN 60228.
-Insulation
XLPE material
-Colour Code
Colour Code (1) :
1 Core: Transparent, Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
Colour Code (2) :
1 Core: Transparent,Brown or Blue
2 Cores: Brown or Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores: Black Cores with White numerals
-Outer Sheath: Extruded PVC.
 |
 |
 |
3. Standard:
IEC60502-1 Cable
Low smoke (acc. EN 61034-2)
Flame retardant Acc. EN 50265-2-1
4. Cable Parameters:IEC60502-1 Cable
|
Single core |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
1x1.5 |
1.4 |
0.7 |
1.4 |
5.6 |
|
1x2.5 |
1.8 |
0.7 |
1.4 |
6.0 |
|
1x4 |
2.3 |
0.7 |
1.4 |
6.5 |
|
1x6 |
2.8 |
0.7 |
1.4 |
7.0 |
|
1x10 |
3.6 |
0.7 |
1.4 |
7.8 |
|
1x16 |
4.5 |
0.7 |
1.4 |
8.7 |
|
1x25 |
5.6 |
0.9 |
1.4 |
10.2 |
|
1x35 |
6.7 |
0.9 |
1.4 |
11.3 |
|
1x50 |
8.0 |
1 |
1.4 |
12.8 |
|
1x70 |
9.4 |
1.1 |
1.4 |
14.4 |
|
1x95 |
11.0 |
1.1 |
1.5 |
16.1 |
|
1x120 |
12.4 |
1.2 |
1.5 |
17.8 |
|
1x150 |
13.8 |
1.4 |
1.6 |
19.8 |
|
1x185 |
15.3 |
1.6 |
1.6 |
21.8 |
|
1x240 |
17.5 |
1.7 |
1.7 |
24.4 |
|
1x300 |
19.5 |
1.8 |
1.8 |
26.7 |
|
1x400 |
22.6 |
2 |
1.9 |
30.5 |
|
1x500 |
25.2 |
2.2 |
2.0 |
33.7 |
|
1x630 |
28.3 |
2.4 |
2.2 |
37.4 |
|
1x800 |
31.9 |
2.6 |
2.3 |
41.7 |
|
1x1000 |
35.7 |
2.8 |
2.4 |
46.2 |
|
Two cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
2x1.5 |
1.4 |
0.7 |
1.8 |
9.2 |
|
2x2.5 |
1.8 |
0.7 |
1.8 |
10.0 |
|
2x4 |
2.3 |
0.7 |
1.8 |
11.0 |
|
2x6 |
2.8 |
0.7 |
1.8 |
12.0 |
|
2x10 |
3.6 |
0.7 |
1.8 |
13.6 |
|
2x16 |
4.5 |
0.7 |
1.8 |
15.4 |
|
2x25 |
5.6 |
0.9 |
1.8 |
18.4 |
|
2x35 |
6.7 |
0.9 |
1.8 |
20.6 |
|
2x50 |
8.0 |
1 |
1.8 |
23.6 |
|
2x70 |
9.4 |
1.1 |
1.8 |
26.8 |
|
2x95 |
11.0 |
1.1 |
1.9 |
30.2 |
|
2x120 |
12.4 |
1.2 |
2.0 |
33.7 |
|
2x150 |
13.8 |
1.4 |
2.2 |
37.5 |
|
2x185 |
15.3 |
1.6 |
2.3 |
41.6 |
|
2x240 |
17.5 |
1.7 |
2.5 |
46.7 |
|
2x300 |
19.5 |
1.8 |
2.6 |
51.4 |
|
2x400 |
22.6 |
2 |
2.9 |
58.9 |
|
Three cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
3x1.5 |
1.4 |
0.7 |
1.8 |
9.6 |
|
3x2.5 |
1.8 |
0.7 |
1.8 |
10.5 |
|
3x4 |
2.3 |
0.7 |
1.8 |
11.6 |
|
3x6 |
2.8 |
0.7 |
1.8 |
12.6 |
|
3x10 |
3.6 |
0.7 |
1.8 |
14.4 |
|
3x16 |
4.5 |
0.7 |
1.8 |
16.3 |
|
3x25 |
5.6 |
0.9 |
1.8 |
19.5 |
|
3x35 |
6.7 |
0.9 |
1.8 |
21.9 |
|
3x50 |
8.0 |
1 |
1.8 |
25.1 |
|
3x70 |
9.4 |
1.1 |
1.9 |
28.7 |
|
3x95 |
11.0 |
1.1 |
2.0 |
32.4 |
|
3x120 |
12.4 |
1.2 |
2.1 |
36.1 |
|
3x150 |
13.8 |
1.4 |
2.3 |
40.3 |
|
3x185 |
15.3 |
1.6 |
2.4 |
44.6 |
|
3x240 |
17.5 |
1.7 |
2.6 |
50.2 |
|
3x300 |
19.5 |
1.8 |
2.7 |
55.2 |
|
3x400 |
22.6 |
2 |
3.0 |
63.3 |
|
Four cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
4x1.5 |
1.4 |
0.7 |
1.8 |
10.4 |
|
4x2.5 |
1.8 |
0.7 |
1.8 |
11.3 |
|
4x4 |
2.3 |
0.7 |
1.8 |
12.5 |
|
4x6 |
2.8 |
0.7 |
1.8 |
13.7 |
|
4x10 |
3.6 |
0.7 |
1.8 |
15.7 |
|
4x16 |
4.5 |
0.7 |
1.8 |
17.8 |
|
4x25 |
5.6 |
0.9 |
1.8 |
21.5 |
|
4x35 |
6.7 |
0.9 |
1.8 |
24.1 |
|
4x50 |
8.0 |
1 |
1.8 |
27.8 |
|
4x70 |
9.4 |
1.1 |
2.0 |
32.0 |
|
4x95 |
11.0 |
1.1 |
2.1 |
36.1 |
|
4x120 |
12.4 |
1.2 |
2.3 |
40.2 |
|
4x150 |
13.8 |
1.4 |
2.4 |
44.9 |
|
4x185 |
15.3 |
1.6 |
2.6 |
49.8 |
|
4x240 |
17.5 |
1.7 |
2.8 |
56.0 |
|
4x300 |
19.5 |
1.8 |
3.0 |
61.7 |
|
4x400 |
22.6 |
2 |
3.2 |
70.7 |
|
Multi cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
5x1.5 |
1.4 |
0.7 |
1.8 |
11.2 |
|
7x1.5 |
1.4 |
0.7 |
1.8 |
12.0 |
|
10x1.5 |
1.4 |
0.7 |
1.8 |
14.8 |
|
12x1.5 |
1.4 |
0.7 |
1.8 |
15.2 |
|
14x1.5 |
1.4 |
0.7 |
1.8 |
16.0 |
|
19x1.5 |
1.4 |
0.7 |
1.8 |
17.6 |
|
21x1.5 |
1.4 |
0.7 |
1.8 |
18.4 |
|
24x1.5 |
1.4 |
0.7 |
1.8 |
20.4 |
|
30x1.5 |
1.4 |
0.7 |
1.8 |
21.6 |
|
40x1.5 |
1.4 |
0.7 |
1.8 |
26.0 |
|
48x1.5 |
1.4 |
0.7 |
1.8 |
26.4 |
|
61x1.5 |
1.4 |
0.7 |
1.9 |
29.0 |
|
5x2.5 |
1.8 |
0.7 |
1.8 |
12.2 |
|
7x2.5 |
1.8 |
0.7 |
1.8 |
13.2 |
|
10x2.5 |
1.8 |
0.7 |
1.8 |
16.4 |
|
12x2.5 |
1.8 |
0.7 |
1.8 |
16.9 |
|
14x2.5 |
1.8 |
0.7 |
1.8 |
17.7 |
|
19x2.5 |
1.8 |
0.7 |
1.8 |
19.6 |
|
21x2.5 |
1.8 |
0.7 |
1.8 |
20.6 |
|
24x2.5 |
1.8 |
0.7 |
1.8 |
22.8 |
|
30x2.5 |
1.8 |
0.7 |
1.8 |
24.1 |
|
40x2.5 |
1.8 |
0.7 |
1.9 |
29.4 |
|
48x2.5 |
1.8 |
0.7 |
1.9 |
29.9 |
|
61x2.5 |
1.8 |
0.7 |
2.0 |
32.8 |
5.Package: Export wooden drums.
 |
 |
6.Factory
Shandong Renhui Cable Co., Ltd. is founded in 2010, located in Jinan city,Shandong Province, China. The company covers an area of 50 thousand square meters, registered fund of RMB 5 million, has 100 staff and workers. We are a professional cable manufacturer in China.
The products mainly cover low and medium voltage cable, PVC insulated cable, XLPE insulated cable, control cable, communication cable, rubber cable, mine cable, welding cable, ship cable, aerial bundled cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Power Station, Mine, Port and Architectural Engineering, and other fields.
The products have been sold to 50 countries and regions in the world, such as Germany, French, Dubai, Oman, Singapore, Vietnam, Pakistan, Philippines, Sri Lanka, Tanzania, Yemen, Kenya, Mongolia,Russia, Algeria, Bahrain, Brazil, Chile, Cyprus, Indonesia, Iran, Malaysia.
 |
 |
 |
 |
