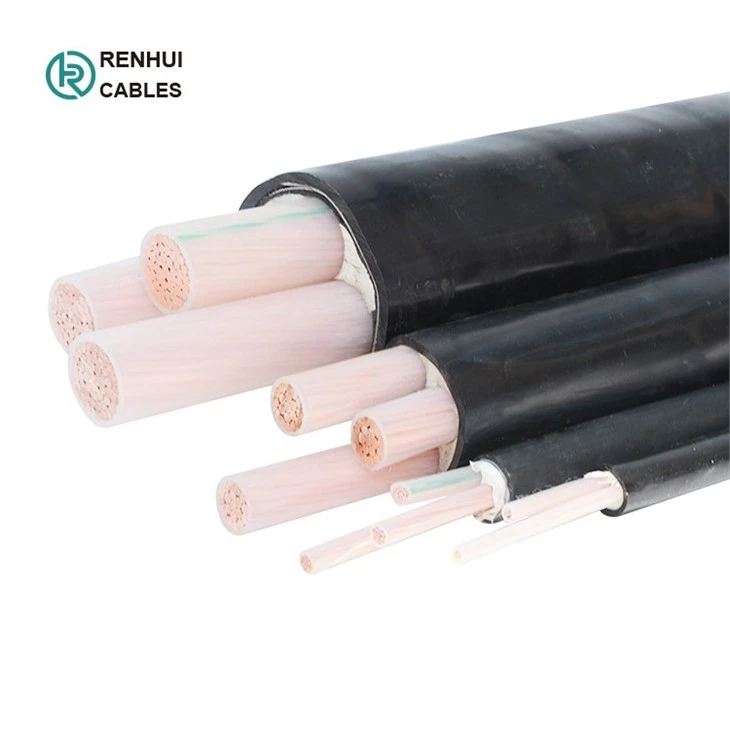

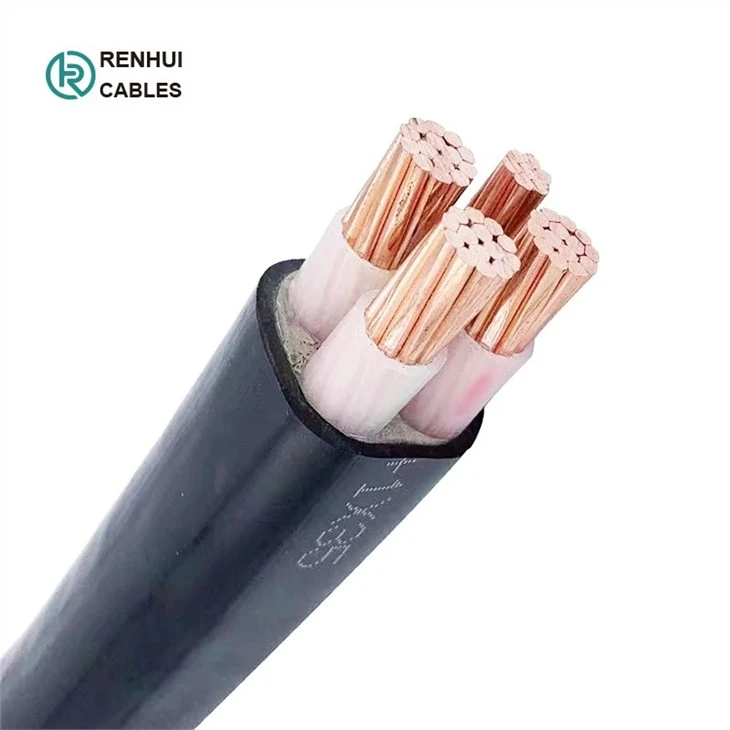

low voltage electric cable,CU/XLPE/PVC,0.6/1 kV,IEC 60502-1.
Application (IEC 60502-1 Cables):
IEC60502-1 cables are high-quality insulated power cables designed for use in low voltage applications. These cables are manufactured to meet strict international standards for performance and safety, ensuring reliable and efficient power transmission.
They are commonly used in industrial applications such as power distribution, lighting and control circuits, as well as in residential and commercial buildings for wiring purposes. The cables are also suitable for outdoor use.
Construction(IEC 60502-1 Cables):
Conductors
Solid copper conductor Class 1, Stranded Copper conductor Class 2 to IEC 60228, BS EN 60228.
Insulation
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
Colour Code IEC 60502-1 Cables
Colour Code (1) :
1 Core: Transparent, Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
Colour Code (2) :
1 Core: Transparent,Brown or Blue
2 Cores: Brown or Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores: Black Cores with White numerals
Outer Sheath
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.7211, BS 6724 or other equivalent standards.7211, BS 6724 or other equivalent standards.7211, BS 6724 or other equivalent standards.
Cable Parameters(IEC 60502-1 Cables):
|
Single core |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
1x1.5 |
1.4 |
0.7 |
1.4 |
5.6 |
|
1x2.5 |
1.8 |
0.7 |
1.4 |
6.0 |
|
1x4 |
2.3 |
0.7 |
1.4 |
6.5 |
|
1x6 |
2.8 |
0.7 |
1.4 |
7.0 |
|
1x10 |
3.6 |
0.7 |
1.4 |
7.8 |
|
1x16 |
4.5 |
0.7 |
1.4 |
8.7 |
|
1x25 |
5.6 |
0.9 |
1.4 |
10.2 |
|
1x35 |
6.7 |
0.9 |
1.4 |
11.3 |
|
1x50 |
8.0 |
1 |
1.4 |
12.8 |
|
1x70 |
9.4 |
1.1 |
1.4 |
14.4 |
|
1x95 |
11.0 |
1.1 |
1.5 |
16.1 |
|
1x120 |
12.4 |
1.2 |
1.5 |
17.8 |
|
1x150 |
13.8 |
1.4 |
1.6 |
19.8 |
|
1x185 |
15.3 |
1.6 |
1.6 |
21.8 |
|
1x240 |
17.5 |
1.7 |
1.7 |
24.4 |
|
1x300 |
19.5 |
1.8 |
1.8 |
26.7 |
|
1x400 |
22.6 |
2 |
1.9 |
30.5 |
|
1x500 |
25.2 |
2.2 |
2.0 |
33.7 |
|
1x630 |
28.3 |
2.4 |
2.2 |
37.4 |
|
1x800 |
31.9 |
2.6 |
2.3 |
41.7 |
|
1x1000 |
35.7 |
2.8 |
2.4 |
46.2 |
|
Two cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
2x1.5 |
1.4 |
0.7 |
1.8 |
9.2 |
|
2x2.5 |
1.8 |
0.7 |
1.8 |
10.0 |
|
2x4 |
2.3 |
0.7 |
1.8 |
11.0 |
|
2x6 |
2.8 |
0.7 |
1.8 |
12.0 |
|
2x10 |
3.6 |
0.7 |
1.8 |
13.6 |
|
2x16 |
4.5 |
0.7 |
1.8 |
15.4 |
|
2x25 |
5.6 |
0.9 |
1.8 |
18.4 |
|
2x35 |
6.7 |
0.9 |
1.8 |
20.6 |
|
2x50 |
8.0 |
1 |
1.8 |
23.6 |
|
2x70 |
9.4 |
1.1 |
1.8 |
26.8 |
|
2x95 |
11.0 |
1.1 |
1.9 |
30.2 |
|
2x120 |
12.4 |
1.2 |
2.0 |
33.7 |
|
2x150 |
13.8 |
1.4 |
2.2 |
37.5 |
|
2x185 |
15.3 |
1.6 |
2.3 |
41.6 |
|
2x240 |
17.5 |
1.7 |
2.5 |
46.7 |
|
2x300 |
19.5 |
1.8 |
2.6 |
51.4 |
|
2x400 |
22.6 |
2 |
2.9 |
58.9 |
|
Three cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
3x1.5 |
1.4 |
0.7 |
1.8 |
9.6 |
|
3x2.5 |
1.8 |
0.7 |
1.8 |
10.5 |
|
3x4 |
2.3 |
0.7 |
1.8 |
11.6 |
|
3x6 |
2.8 |
0.7 |
1.8 |
12.6 |
|
3x10 |
3.6 |
0.7 |
1.8 |
14.4 |
|
3x16 |
4.5 |
0.7 |
1.8 |
16.3 |
|
3x25 |
5.6 |
0.9 |
1.8 |
19.5 |
|
3x35 |
6.7 |
0.9 |
1.8 |
21.9 |
|
3x50 |
8.0 |
1 |
1.8 |
25.1 |
|
3x70 |
9.4 |
1.1 |
1.9 |
28.7 |
|
3x95 |
11.0 |
1.1 |
2.0 |
32.4 |
|
3x120 |
12.4 |
1.2 |
2.1 |
36.1 |
|
3x150 |
13.8 |
1.4 |
2.3 |
40.3 |
|
3x185 |
15.3 |
1.6 |
2.4 |
44.6 |
|
3x240 |
17.5 |
1.7 |
2.6 |
50.2 |
|
3x300 |
19.5 |
1.8 |
2.7 |
55.2 |
|
3x400 |
22.6 |
2 |
3.0 |
63.3 |
|
Four cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
4x1.5 |
1.4 |
0.7 |
1.8 |
10.4 |
|
4x2.5 |
1.8 |
0.7 |
1.8 |
11.3 |
|
4x4 |
2.3 |
0.7 |
1.8 |
12.5 |
|
4x6 |
2.8 |
0.7 |
1.8 |
13.7 |
|
4x10 |
3.6 |
0.7 |
1.8 |
15.7 |
|
4x16 |
4.5 |
0.7 |
1.8 |
17.8 |
|
4x25 |
5.6 |
0.9 |
1.8 |
21.5 |
|
4x35 |
6.7 |
0.9 |
1.8 |
24.1 |
|
4x50 |
8.0 |
1 |
1.8 |
27.8 |
|
4x70 |
9.4 |
1.1 |
2.0 |
32.0 |
|
4x95 |
11.0 |
1.1 |
2.1 |
36.1 |
|
4x120 |
12.4 |
1.2 |
2.3 |
40.2 |
|
4x150 |
13.8 |
1.4 |
2.4 |
44.9 |
|
4x185 |
15.3 |
1.6 |
2.6 |
49.8 |
|
4x240 |
17.5 |
1.7 |
2.8 |
56.0 |
|
4x300 |
19.5 |
1.8 |
3.0 |
61.7 |
|
4x400 |
22.6 |
2 |
3.2 |
70.7 |
|
Multi cores |
|
|||
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter (Approx.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
5x1.5 |
1.4 |
0.7 |
1.8 |
11.2 |
|
7x1.5 |
1.4 |
0.7 |
1.8 |
12.0 |
|
10x1.5 |
1.4 |
0.7 |
1.8 |
14.8 |
|
12x1.5 |
1.4 |
0.7 |
1.8 |
15.2 |
|
14x1.5 |
1.4 |
0.7 |
1.8 |
16.0 |
|
19x1.5 |
1.4 |
0.7 |
1.8 |
17.6 |
|
21x1.5 |
1.4 |
0.7 |
1.8 |
18.4 |
|
24x1.5 |
1.4 |
0.7 |
1.8 |
20.4 |
|
30x1.5 |
1.4 |
0.7 |
1.8 |
21.6 |
|
40x1.5 |
1.4 |
0.7 |
1.8 |
26.0 |
|
48x1.5 |
1.4 |
0.7 |
1.8 |
26.4 |
|
61x1.5 |
1.4 |
0.7 |
1.9 |
29.0 |
|
5x2.5 |
1.8 |
0.7 |
1.8 |
12.2 |
|
7x2.5 |
1.8 |
0.7 |
1.8 |
13.2 |
|
10x2.5 |
1.8 |
0.7 |
1.8 |
16.4 |
|
12x2.5 |
1.8 |
0.7 |
1.8 |
16.9 |
|
14x2.5 |
1.8 |
0.7 |
1.8 |
17.7 |
|
19x2.5 |
1.8 |
0.7 |
1.8 |
19.6 |
|
21x2.5 |
1.8 |
0.7 |
1.8 |
20.6 |
|
24x2.5 |
1.8 |
0.7 |
1.8 |
22.8 |
|
30x2.5 |
1.8 |
0.7 |
1.8 |
24.1 |
|
40x2.5 |
1.8 |
0.7 |
1.9 |
29.4 |
|
48x2.5 |
1.8 |
0.7 |
1.9 |
29.9 |
|
61x2.5 |
1.8 |
0.7 |
2.0 |
32.8 |
Package: Export wooden drums.
