1.Application (N2XY cables):
These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
2.Standards(N2XY cables):
IEC 60502-1, VDE 0276-603, IEC/EN 60228
Flame retardant according to IEC/EN 60332-1-2

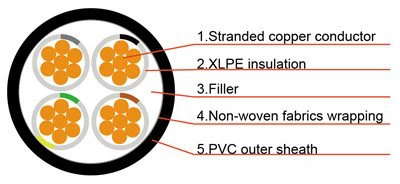

3.Construction (N2XY cables):
Conductor RE: Class 1 solid copper conductor RM: Class 2 stranded circular or circular compacted SM: Class 2 stranded sectoral shaped Insulation XLPE (Cross-Linked Polyethylene) Sheath PVC (Polyvinyl Chloride) Core Identification 3 core: Green/Yellow Blue Brown 4 core: Green/Yellow Brown Black Grey 5 core: Green/Yellow Blue Brown Black Grey 7 cores and above: Black cores and White numbers Sheath Colour: Black |
|
|
4.Characteristic (N2XY cables):
Voltage Rating Uo/U: 0.6/1kV Temperature Rating During installation -5°C to +50ºC Fixed Installation: -20°C to +90°C Minimum Bending Radius Fixed: 12 x overall diameter |
|
5.Cable Parameters(N2XY cables):
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm² | mm | mm | mm | mm |
4x1.5 | 1.4 | 0.7 | 1.8 | 10.4 |
4x2.5 | 1.8 | 0.7 | 1.8 | 11.3 |
4x4 | 2.3 | 0.7 | 1.8 | 12.5 |
4x6 | 2.8 | 0.7 | 1.8 | 13.7 |
4x10 | 3.6 | 0.7 | 1.8 | 15.7 |
4x16 | 4.5 | 0.7 | 1.8 | 17.8 |
4x25 | 5.6 | 0.9 | 1.8 | 21.5 |
4x35 | 6.7 | 0.9 | 1.8 | 24.1 |
4x50 | 8.0 | 1 | 1.8 | 27.8 |
4x70 | 9.4 | 1.1 | 2.0 | 32.0 |
4x95 | 11.0 | 1.1 | 2.1 | 36.1 |
4x120 | 12.4 | 1.2 | 2.3 | 40.2 |
4x150 | 13.8 | 1.4 | 2.4 | 44.9 |
4x185 | 15.3 | 1.6 | 2.6 | 49.8 |
4x240 | 17.5 | 1.7 | 2.8 | 56.0 |
4x300 | 19.5 | 1.8 | 3.0 | 61.7 |
4x400 | 22.6 | 2 | 3.2 | 70.7 |
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
mm² | mm | mm | mm | mm |
5x1.5 | 1.4 | 0.7 | 1.8 | 11.2 |
7x1.5 | 1.4 | 0.7 | 1.8 | 12.0 |
10x1.5 | 1.4 | 0.7 | 1.8 | 14.8 |
12x1.5 | 1.4 | 0.7 | 1.8 | 15.2 |
14x1.5 | 1.4 | 0.7 | 1.8 | 16.0 |
19x1.5 | 1.4 | 0.7 | 1.8 | 17.6 |
21x1.5 | 1.4 | 0.7 | 1.8 | 18.4 |
24x1.5 | 1.4 | 0.7 | 1.8 | 20.4 |
30x1.5 | 1.4 | 0.7 | 1.8 | 21.6 |
40x1.5 | 1.4 | 0.7 | 1.8 | 26.0 |
48x1.5 | 1.4 | 0.7 | 1.8 | 26.4 |
61x1.5 | 1.4 | 0.7 | 1.9 | 29.0 |
5x2.5 | 1.8 | 0.7 | 1.8 | 12.2 |
7x2.5 | 1.8 | 0.7 | 1.8 | 13.2 |
10x2.5 | 1.8 | 0.7 | 1.8 | 16.4 |
12x2.5 | 1.8 | 0.7 | 1.8 | 16.9 |
14x2.5 | 1.8 | 0.7 | 1.8 | 17.7 |
19x2.5 | 1.8 | 0.7 | 1.8 | 19.6 |
21x2.5 | 1.8 | 0.7 | 1.8 | 20.6 |
24x2.5 | 1.8 | 0.7 | 1.8 | 22.8 |
30x2.5 | 1.8 | 0.7 | 1.8 | 24.1 |
40x2.5 | 1.8 | 0.7 | 1.9 | 29.4 |
48x2.5 | 1.8 | 0.7 | 1.9 | 29.9 |
61x2.5 | 1.8 | 0.7 | 2.0 | 32.8 |
6.Package: Export wooden drums (N2XY cables).
