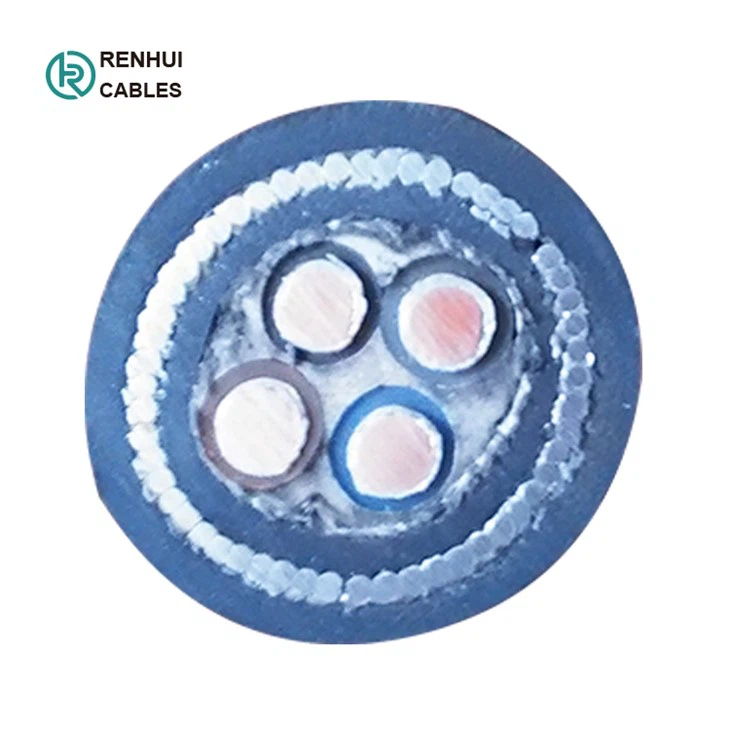

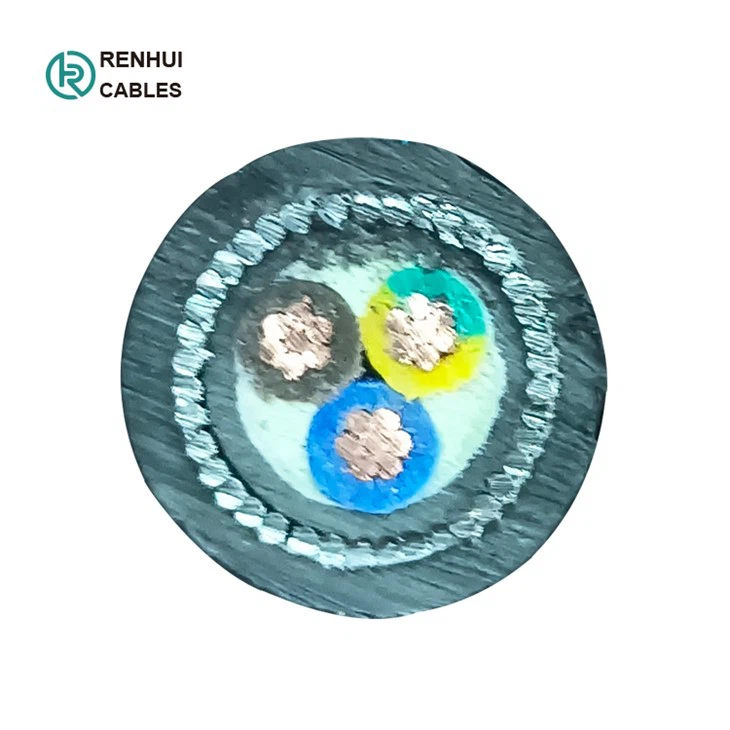

1.Application (CU/XLPE/PVC/SWA/PVC Cable):
CU/XLPE/PVC/SWA/PVC Cable – power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
2.Standards
BS6724, IEC 60502-1, IEC 60754-1 and 2 BS EN 50267-2-1 and 2, BS EN / IEC 61034-1
3.Technical Data (CU/XLPE/PVC/SWA/PVC Cable):
Conductor
Class 2 plain stranded copper conductor to BS EN 60228:2005
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
LSZH (Low Smoke Zero Halogen)
Armored
Single Core: AWA (Aluminium Wire Armour)
Multi-Core: SWA (Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
Black
Voltage Rating
600/1000V
Temperature Rating
0°C to +90°C
Minimum Bending Radius
1.5mm2 - 16mm2: 6 x overall diameter
25mm2 and above: 8 x overall diameter
Core Identification
1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White cores with Black numbers
3.Cable Parameters (CU/XLPE/PVC/SWA/PVC Cable):
| ||||||
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Alum Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm² | mm | mm | mm | mm | mm | mm |
1x4 | 2.3 | 0.7 | 1.0 | 0.8 | 1.8 | 10.9 |
1x6 | 2.8 | 0.7 | 1.0 | 0.8 | 1.8 | 11.4 |
1x10 | 3.6 | 0.7 | 1.0 | 0.8 | 1.8 | 12.2 |
1x16 | 4.5 | 0.7 | 1.0 | 0.8 | 1.8 | 13.1 |
1x25 | 5.6 | 0.9 | 1.0 | 0.8 | 1.8 | 14.6 |
1x35 | 6.7 | 0.9 | 1.0 | 1.25 | 1.8 | 16.6 |
1x50 | 8.0 | 1 | 1.0 | 1.25 | 1.8 | 18.1 |
1x70 | 9.4 | 1.1 | 1.0 | 1.25 | 1.8 | 19.7 |
1x95 | 11.0 | 1.1 | 1.0 | 1.6 | 1.8 | 22.0 |
1x120 | 12.4 | 1.2 | 1.0 | 1.6 | 1.8 | 23.6 |
1x150 | 13.8 | 1.4 | 1.0 | 1.6 | 1.8 | 25.4 |
1x185 | 15.3 | 1.6 | 1.0 | 1.6 | 1.8 | 27.4 |
1x240 | 17.5 | 1.7 | 1.0 | 1.6 | 1.9 | 29.9 |
1x300 | 19.5 | 1.8 | 1.0 | 2.0 | 2.0 | 33.1 |
1x400 | 22.6 | 2 | 1.2 | 2.0 | 2.2 | 37.3 |
1x500 | 25.2 | 2.2 | 1.2 | 2.0 | 2.3 | 40.5 |
| ||||||
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
mm² | mm | mm | mm | mm | mm | mm |
2x1.5 | 1.4 | 0.7 | 1.0 | 0.8 | 1.8 | 12.8 |
2x2.5 | 1.8 | 0.7 | 1.0 | 0.8 | 1.8 | 13.6 |
2x4 | 2.3 | 0.7 | 1.0 | 0.8 | 1.8 | 14.6 |
2x6 | 2.8 | 0.7 | 1.0 | 1.25 | 1.8 | 16.5 |
2x10 | 3.6 | 0.7 | 1.0 | 1.25 | 1.8 | 18.1 |
2x16 | 4.5 | 0.7 | 1.0 | 1.25 | 1.8 | 19.9 |
2x25 | 5.6 | 0.9 | 1.0 | 1.6 | 1.8 | 23.6 |
2x35 | 6.7 | 0.9 | 1.0 | 1.6 | 1.8 | 25.8 |
2x50 | 8.0 | 1 | 1.0 | 1.6 | 1.9 | 29.0 |
2x70 | 9.4 | 1.1 | 1.0 | 2.0 | 2.0 | 33.2 |
2x95 | 11.0 | 1.1 | 1.2 | 2.0 | 2.1 | 37.1 |
2x120 | 12.4 | 1.2 | 1.2 | 2.0 | 2.3 | 40.5 |
2x150 | 13.8 | 1.4 | 1.2 | 2.5 | 2.4 | 45.4 |
2x185 | 15.3 | 1.6 | 1.4 | 2.5 | 2.6 | 49.9 |
2x240 | 17.5 | 1.7 | 1.4 | 2.5 | 2.7 | 55.1 |
2x300 | 19.5 | 1.8 | 1.6 | 2.5 | 2.9 | 60.2 |
2x400 | 22.6 | 2 | 1.6 | 2.5 | 3.1 | 67.7 |
4.Production Progress
5.Certificates:
 |
 |
6.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
