1.Application:
H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.
H05V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
H05V-R is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.
2.Construction
|
Conductor |

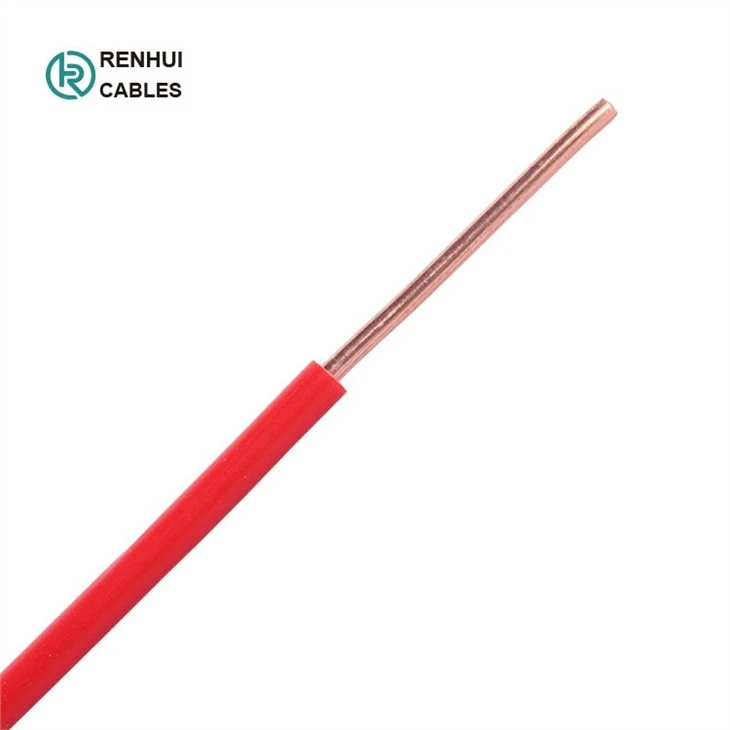

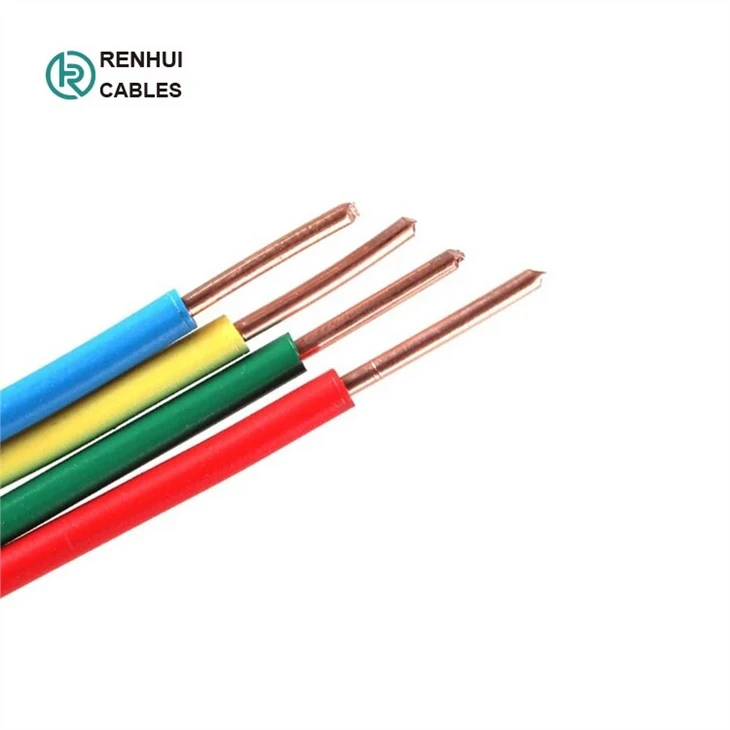

Solid Plain Copper Conductor |
|
|
Stranded Copper Conductor |
||
|
Insulation |
PVC |
|
|
|
|
|
|

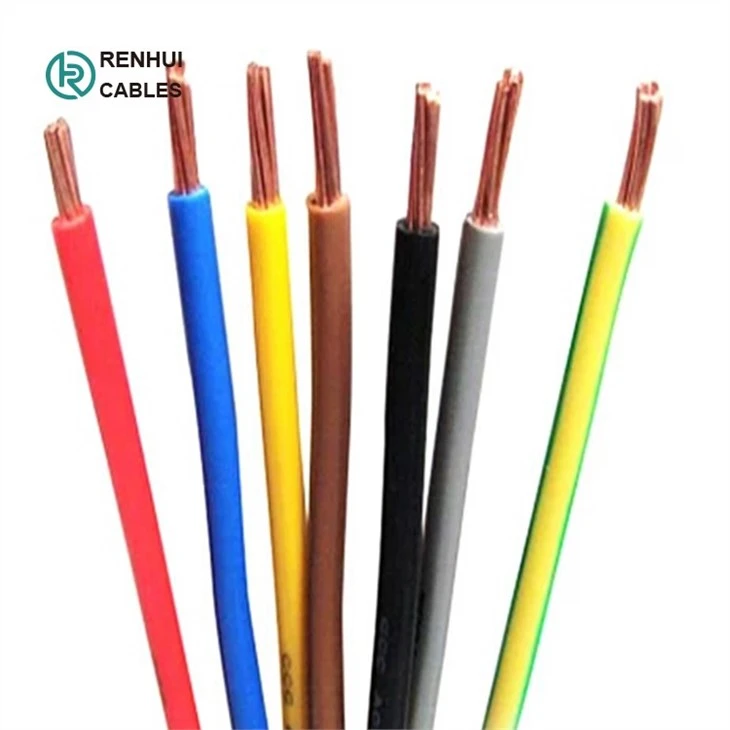

Colour of insulation: green/yellow, blue, black, brown or other colours. |
||
3. Technical Data :
|
Rated voltage |
300/500V |
|
Test voltage |
2000V |
|
Flexing bending radius |
12.5 x Ø |
|
Static bending radius |
12.5 x Ø |
|
Flexing temperature |
-5º C to +70º C |
|
Static temperature |
-30º C to +80º C |
|
Flame retardant |
IEC 60332.1 |
|
Insulation resistance |
10 MΩ x km |
4.H05V-K PVC electric wire 300/500V Specification
|
CONSTRUCTION n x mm2 |
OUTER DIAMETER mm |
Cu WEIGHT kg / km |
CABLE WEIGHT kg / km |
|
1 x 1.5 |
3 |
14,4 |
20 |
|
1 x 2.5 |
3,6 |
24 |
30 |
|
1 x 4 |
4,1 |
38 |
50 |
|
1 x 6 |
4,6 |
58 |
65 |
|
1 x 10 |
6 |
96 |
110 |
|
1 x 16 |
7 |
154 |
165 |
|
1 x 25 |
8,5 |
240 |
242 |
|
1 x 35 |
9,9 |
336 |
350 |
|
1 x 50 |
11,7 |
480 |
482 |
|
1 x 70 |
11,7 |
672 |
662 |
|
1 x 95 |
15,3 |
912 |
885 |
|
1 x 120 |
16,8 |
1152 |
1123 |
|
1 x 150 |
19,2 |
1440 |
1390 |
|
1 x 185 |
21,3 |
1776 |
1733 |
|
1 x 240 |
23,8 |
2304 |
2264 |
5、H05V-U PVC electric Cable 300/500V Specification
|
AWG |
No. of Cores x |
Nominal Overall |
Nominal Copper |
Nominal Weight |
|
20 |
1 x 0.5 |
2.1 |
4.8 |
9 |
|
18 |
1 x 0.75 |
2.2 |
7.2 |
11 |
|
17 |
1 x 1 |
2.4 |
9.6 |
14 |
|
16 |
1 x 1.5 |
2.9 |
14.4 |
21 |
|
14 |
1 x 2.5 |
3.5 |
24 |
33 |
|
12 |
1 x 4 |
3.9 |
38 |
49 |
|
10 |
1 x 6 |
4.5 |
58 |
69 |
|
8 |
1 x 10 |
5.7 |
96 |
115 |
6.H05V-R PVC wires 300/500V Specification
|
AWG |
No. of Cores x |
Nominal Overall |
Nominal Copper Weight |
Nominal Weight |
|
20(7/29) |
1 x 0.5 |
2.2 |
4.8 |
9 |
|
18(7/27) |
1 x 0.75 |
2.4 |
7.2 |
12 |
|
17(7/26) |
1 x 1 |
2.6 |
9.6 |
15 |
