1.Application
Used for indoor lighting system and devices in building
2.Operation characteristics
1. U0/U is 450/750V and 300/500V;
2.The bending radius shall not be less than 4D of the cable overall diameter it is less 25mm; The bending radius shall not be less than 6D of cable overall diameter when it’s more than 25mm.

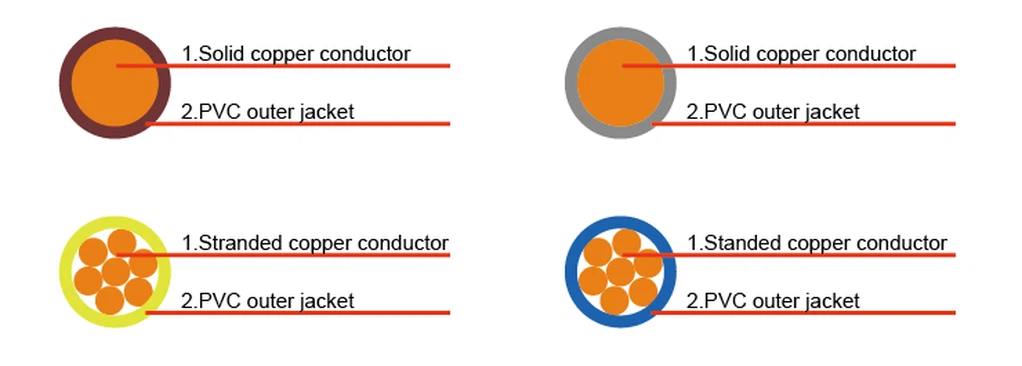

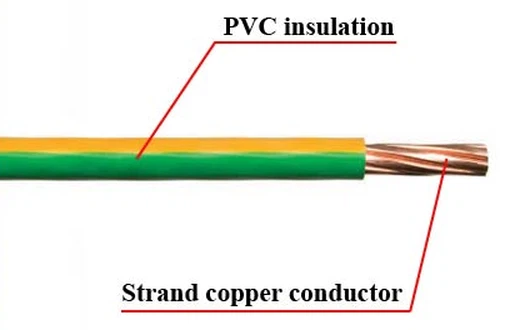

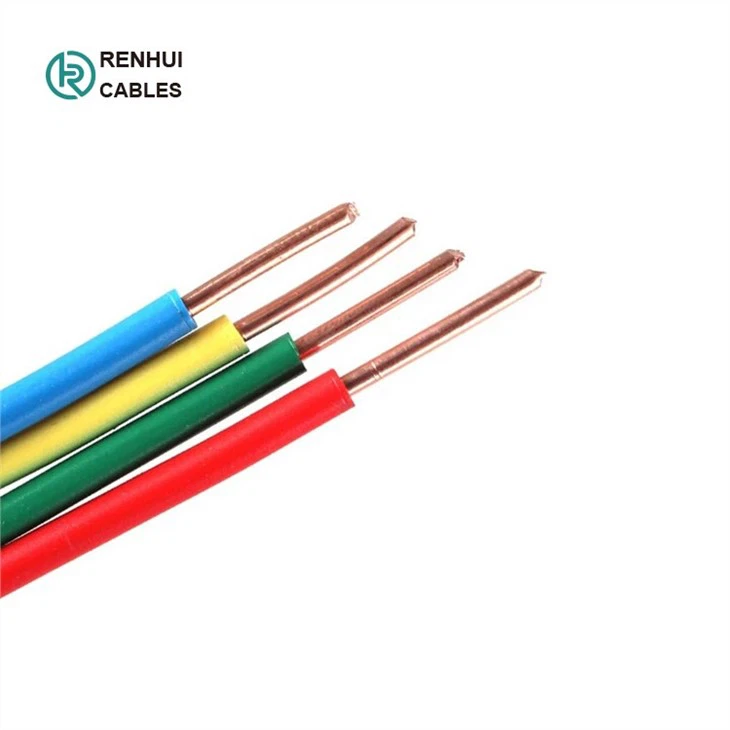

3.Construction
|

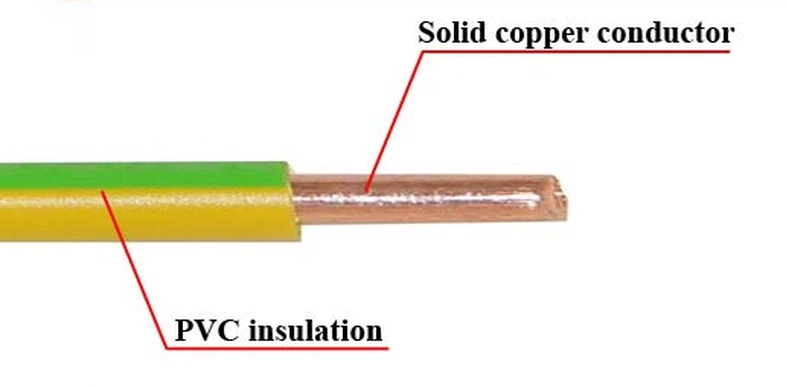

Conductor |

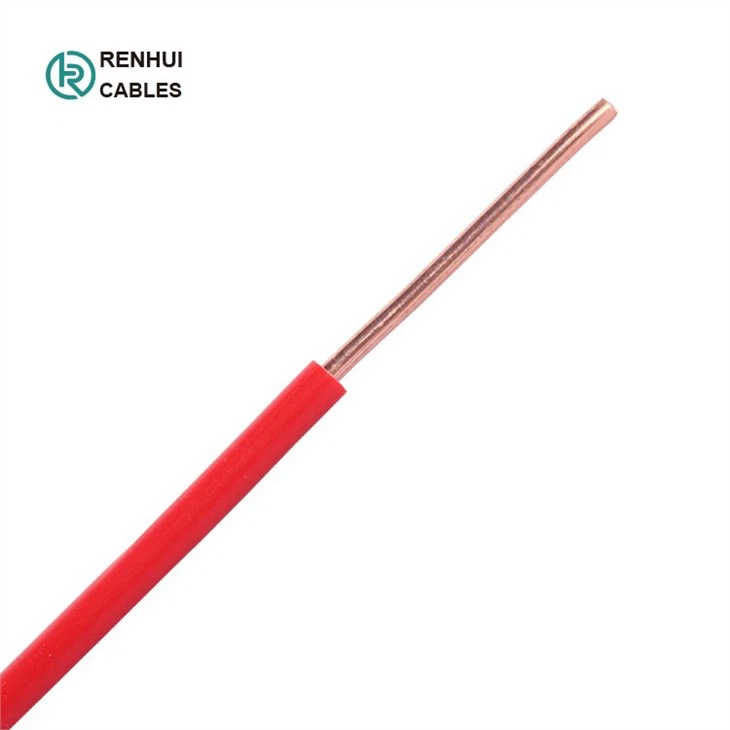

Solid Plain Copper Conductor |
|
|

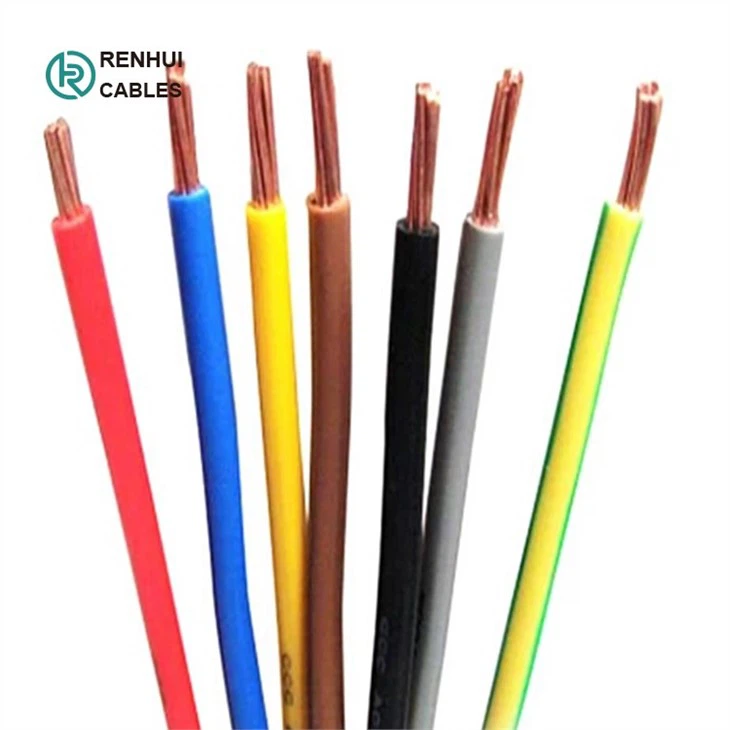

Stranded Copper Conductor |
||
|
Insulation |
PVC |
|
|
|
||
|
|
|
|
4.Models and Parameters
|
Rated Voltage |
Normal area (mm) |
Overall diameter (mm) |
Weight (KG) |
Conductor Resistance rate Not more than at 20 centigrade (Ω/km) |
Wire core structure Cores/Diameters (mm) |
|
300/500V |
0.5 |
2.4 |
8.5 |
36.0 |
1/0.80 |
|
300/500V |
0.75(A) |
2.6 |
11.1 |
24.5 |
1/0.97 |
|
300/500V |
0.75(B) |
2.8 |
12.0 |
24.5 |
7/0.37 |
|
300/500V |
1.0(A) |
2.8 |
13.9 |
18.1 |
1/1.13 |
|
300/500V |
1.0(B) |
3.0 |
15.0 |
18.1 |
7/0.43 |
|
450/750V |
1.5(A) |
3.3 |
20.3 |
12.1 |
1/1.38 |
|
450/750V |
1.5(B) |
3.5 |
21.6 |
12.1 |
7/0.52 |
|
450/750V |
2.5(A) |
3.9 |
31.6 |
7.41 |
1/1.78 |
|
450/750V |
2.5(B) |
4.2 |
34.8 |
7.41 |
7/0.68 |
|
450/750V |
4(A) |
4.4 |
47.1 |
4.61 |
1/2.76 |
|
450/750V |
4(B) |
4.8 |
50.3 |
4.61 |
7/1.04 |
|
450/750V |
6(A) |
4.9 |
67.0 |
3.08 |
7/1.35 |
|
450/750V |
6(B) |
5.4 |
71.2 |
3.08 |
7/1.70 |
|
450/750V |
10 |
7.0 |
119 |
1.83 |
7/2.14 |
|
450/750V |
16 |
8.0 |
179 |
1.15 |
7/2.52 |
|
450/750V |
25 |
10 |
281 |
0.727 |
19/7.18 |
|
450/750V |
35 |
11.5 |
381 |
0.524 |
19/2.14 |
|
450/750V |
2.5 |
4.2 |
34.7 |
7.41 |
19/0.41 |
|
450/750V |
4 |
4.8 |
51.4 |
4.61 |
19/0.52 |
|
450/750V |
6 |
5.6 |
73.6 |
3.08 |
19/0.64 |
|
450/750V |
10 |
7.6 |
129 |
1.83 |
49/0.52 |
|
450/750V |
16 |
8.8 |
186 |
1.15 |
49/0.64 |
|
450/750V |
25 |
11.0 |
306 |
0.727 |
98/0.58 |
|
450/750V |
35 |
12.5 |
403 |
0.524 |
133/0.8 |
|
450/750V |
50 |
14.5 |
553 |
0.387 |
133/0.68 |
|
450/750V |
70 |
16.5 |
764 |
0.268 |
189/0.68 |
