1.Application:
H07V-K cable are our most standard harmonized PVC European flexible single-conductor hook-up wires. Ideal for the internal wiring of appliances, apparatus, switchboards, distributor boards and telecommunications devices. Found in electronic and electrical equipment and switch-gear cabinets designed for export to a European country and for MRO replacement of European made equipment wire. Also found in the protective laying in and on lights.

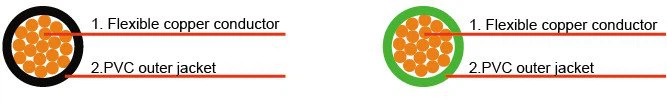

2.Construction:

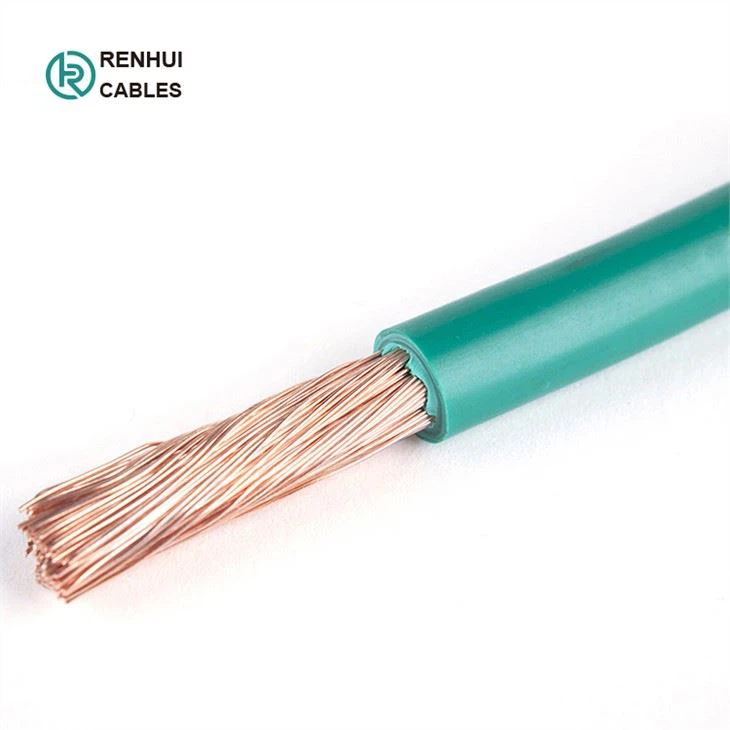

Conductor: fine bare copper strands
Insulation: PVC

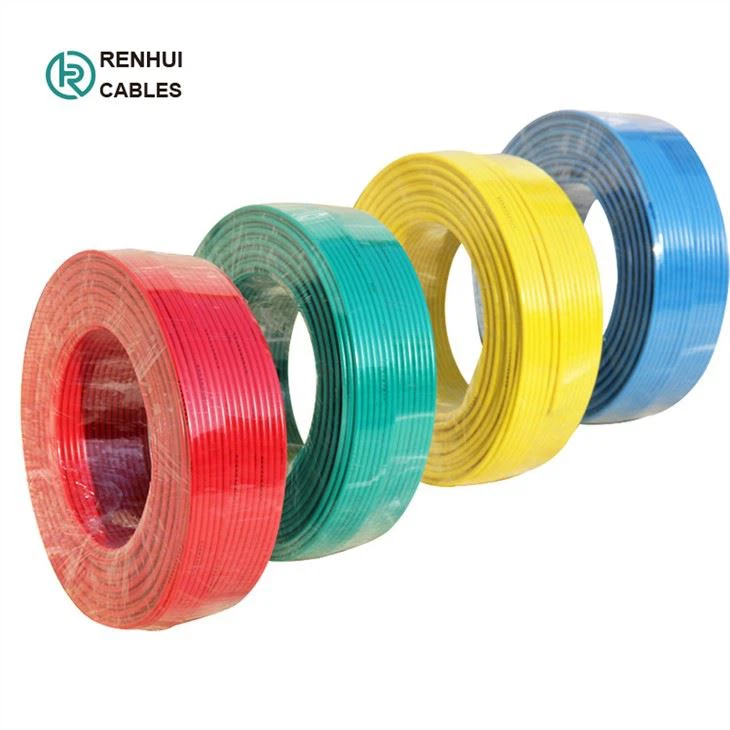

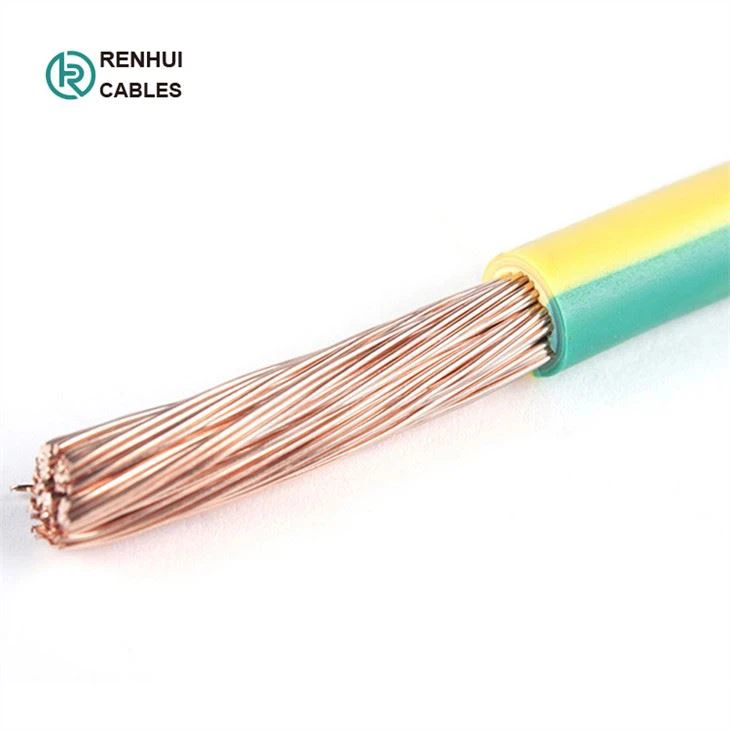

Colour of insulation:green/yellow, blue, black, brown or other colors
3.Operation characteristics
- Working voltage: 450/750v (H07V-K)
- Test voltage: 2000/2500 volts
- Flexing bending radius: 12.5 x Ø
- Static bending radius: 12.5 x Ø
- Flexing temp: -5º C to +70º C
- Static temp: -30º C to +80º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km
4.Specifications
Cross section | Conductor | Insulation | Overall | Min insulation | Weight approx |
1x0.5 | 16/0.2 | 0.60 | 2.40 | 0.013 | 8 |
1x0.75 | 24/0.2 | 0.60 | 2.60 | 0.011 | 11 |
1x1.0 | 32/0.2 | 0.60 | 2.80 | 0.01 | 14 |
1x1.5 | 48/0.2 | 0.70 | 3.50 | 0.01 | 20 |
1x2.5 | 49/0.25 | 0.80 | 4.20 | 0.009 | 31 |
1x4 | 56/0.3 | 0.80 | 4.80 | 0.007 | 47 |
1x6 | 84/0.3 | 0.80 | 6.30 | 0.006 | 67.8 |
1x10 | 84/0.4 | 1.00 | 7.60 | 0.0056 | 121 |
1x16 | 126/0.4 | 1.00 | 8.80 | 0.0046 | 173 |
1x25 | 196/0.4 | 1.20 | 11.00 | 0.0044 | 268 |
1x35 | 276/0.4 | 1.20 | 12.50 | 0.0038 | 370 |
1x50 | 396/0.4 | 1.40 | 14.50 | 0.0037 | 526 |
1x70 | 360/0.5 | 1.40 | 17.00 | 0.0032 | 727 |
1x95 | 475/0.5 | 1.60 | 19.00 | 0.0032 | 959 |
1x120 | 608/0.5 | 1.60 | 21.00 | 0.0029 | 1201 |
1x150 | 756/0.5 | 1.80 | 23.50 | 0.0029 | 1508 |
1x185 | 925/0.5 | 2.00 | 26.00 | 0.0029 | 1844 |
1x240 | 1221/0.5 | 2.20 | 29.50 | 0.0028 | 2420 |
