1.Application:overhead abc cable
The cables are designed for aerial power lines and room-entrance wires with U0/U up to and including 0.6/1kV, 6/10kV.
Aerial Bundle Cable(ABC Cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.
2.Standards: overhead abc cable
ASTM, IEC, NFC, GB/T

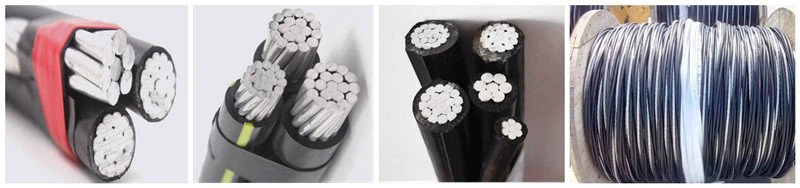

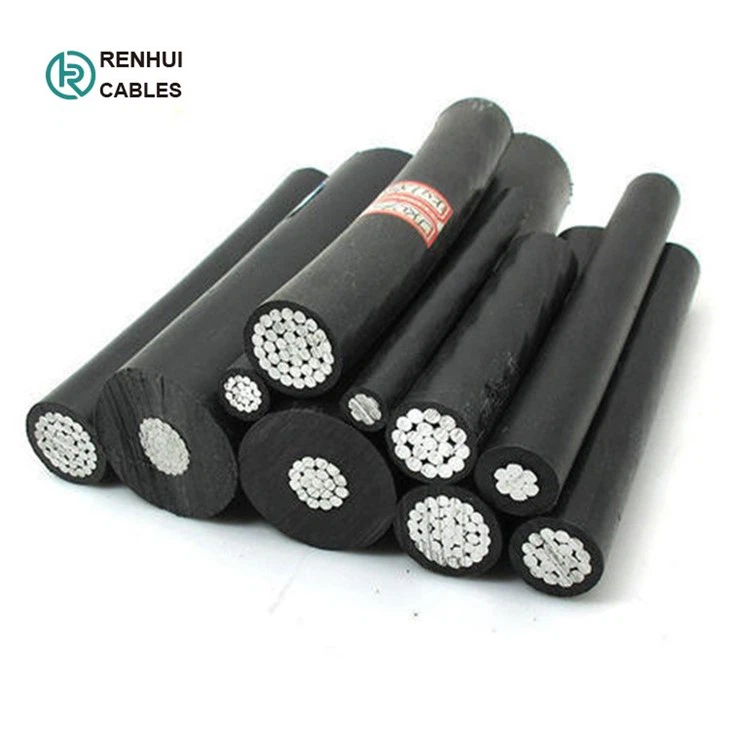

3.Construction & Detailed Images Conductor:overhead abc cable

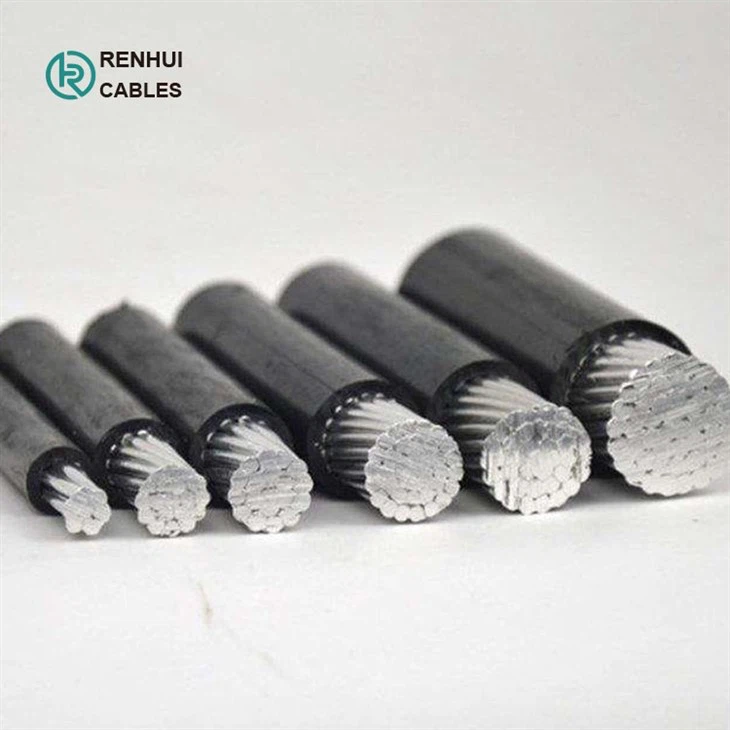

Aluminum conductor, round stranded conpressed(RM). Insulation: XLPE or PE or PVC
4.Models and descriptions: overhead abc cable

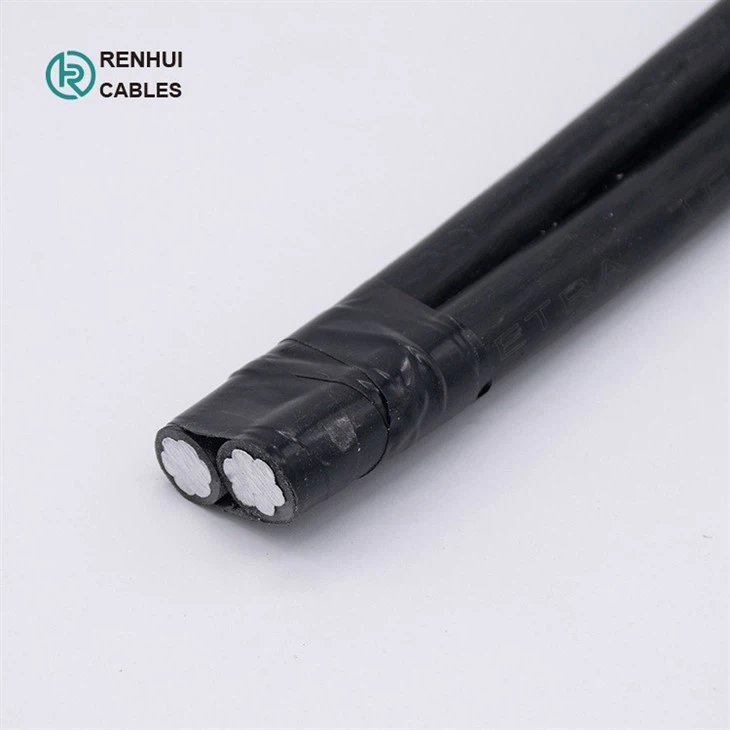

Service drop cable:
JKLY: Aluminum core PE insulated aerial cable
JKLYJ: Aluminum core XLPE insulated aerial cable
Secondary UD cable:
JKLHY: Aluminum alloy core PE insulated aerial cable
JKLHYJ: Aluminum alloy core XLPE insulated aerial cable
Covered line wire:
JKY: Copper core PE insulated aerial cable
JKYJ: Copper core XLPE insulated aerial cable
Core Number & Cross section area
Including 1, 2, 3, 4, 5, 1+1, 2+1, 3+1, 4+1 cores and so on, from 10mm2 to 240mm2 as follows, 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240m2.
5.Dimensions :overhead abc cable
|
number of cores x nominal cross section |
max. conductor- resistance |
min. breaking load of conductor strand |
Current rating in the air |
Outer diameter |
Total weight |
|
mm² |
Ohm/km |
kN |
A |
mm |
kg/km |
|
1x 16 RM |
1,910 |
2,5 |
72 |
80 |
74 |
|
1x 25 RM |
1,200 |
4,0 |
107 |
90 |
106 |
|
1x 35 RM |
0,868 |
5,5 |
132 |
105 |
138 |
|
1x 50 RM |
0,641 |
8,0 |
165 |
118 |
182 |
|
1x 70 RM |
0,443 |
10,7 |
205 |
130 |
252 |
|
1x 95 RM |
0,320 |
13,7 |
240 |
154 |
333 |
|
1x 120 RM |
0,253 |
18,6 |
290 |
170 |
408 |
|
1x 150 RM |
0,206 |
23,2 |
334 |
190 |
502 |
|
1x 185 RM |
0,164 |
28,7 |
389 |
210 |
611 |
|
1x 240 RM |
0,125 |
37,2 |
467 |
240 |
801 |
|
2x 16 RM |
1,910 |
2,5 |
72 |
156 |
147 |
|
2x 25 RM |
1,200 |
4,0 |
107 |
180 |
208 |
|
2x 35 RM |
0,868 |
5,5 |
132 |
200 |
277 |
|
2x 50 RM |
0,641 |
8,0 |
165 |
235 |
361 |
|
2x 70 RM |
0,443 |
10,7 |
205 |
254 |
505 |
|
2x 95 RM |
0,320 |
13,7 |
240 |
303 |
666 |
|
2x 150 RM |
0,206 |
23,2 |
334 |
380 |
1004 |
|
4x 16 RM |
1,910 |
2,5 |
72 |
188 |
286 |
|
4x 25 RM |
1,200 |
4,0 |
107 |
212 |
430 |
|
4x 35 RM |
0,868 |
5,5 |
132 |
241 |
553 |
|
4x 50 RM |
0,641 |
8,0 |
165 |
278 |
746 |
|
4x 70 RM |
0,443 |
10,7 |
205 |
318 |
1009 |
|
4x 95 RM |
0,320 |
13,7 |
240 |
378 |
1332 |
|
4x 120 RM |
0,253 |
18,6 |
290 |
544 |
1632 |
|
4x 50 + 1x 25 RM |
0,641/1,200 |
8,0/4,0 |
165/107 |
319 |
814 |
|
4x 50 + 1x 35 RM |
0,641/0,868 |
8,5/5,5 |
165/132 |
319 |
845 |
|
4x 70 + 1x 25 RM |
0,443/1,200 |
10,7/4,0 |
205/107 |
360 |
1105 |
|
4x 70 + 2x 25 RM |
0,443/1,200 |
10,7/4,0 |
205/107 |
400 |
1217 |
|
4x 95 + 1x 25 RM |
0,320/1,200 |
13,7/4,0 |
240/107 |
418 |
1438 |
|
4x 95 + 2x 25 RM |
0,320/1,200 |
13,7/4,0 |
240/107 |
420 |
1544 |
|
4x120 + 1x 25 RM |
0,253/1,200 |
18,6/4,0 |
290/107 |
590 |
2050 |
6.Production Progress
7.Certificates:
 |
 |
8.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
