1.Application:XHHW-2 Aluminum Conductor
XHHW-2 is intended for use as general purpose wiring for up to 1000 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a maximum conductor temperature of 90 °C in wet or dry locations.
2.Standards : XHHW-2 Aluminum Conductor
ASTM B800 B801
UL44

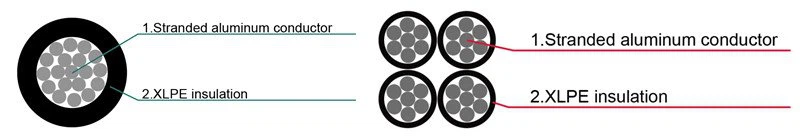

3.Cable Construction : XHHW-2 Aluminum Conductor
4.Parameter: XHHW-2 Aluminum Conductor
|
Conductor Structure (AWG /kcmil) |
No. of wires |
Size |
Cabele Weight Approx. ( kg/km) |
||
|
Insulation Thickness (mm) |
Conductor Diameter (mm) |
Approx. Overall Diameter (mm) |
|||
|
8 |
7 |
1.14 |
3.40 |
5.76 |
44.55 |
|
6 |
7 |
1.14 |
4.29 |
6.65 |
62.37 |
|
4 |
7 |
1.14 |
5.41 |
7.77 |
86.13 |
|
2 |
7 |
1.14 |
6.81 |
9.17 |
127.71 |
|
1 |
18 |
1.40 |
7.59 |
10.46 |
163.35 |
|
1/0 |
18 |
1.40 |
8.51 |
11.40 |
198.99 |
|
2/0 |
18 |
1.40 |
9.60 |
12.42 |
242.06 |
|
3/0 |
18 |
1.40 |
10.74 |
13.61 |
297.00 |
|
4/0 |
18 |
1.40 |
12.09 |
14.17 |
366.80 |
|
250 |
35 |
1.65 |
13.21 |
16.59 |
439.56 |
|
300 |
35 |
1.65 |
14.50 |
17.86 |
533.12 |
|
350 |
35 |
1.65 |
15.60 |
19.02 |
595.48 |
|
400 |
35 |
1.65 |
16.69 |
20.12 |
672.70 |
|
500 |
35 |
1.65 |
18.69 |
22.07 |
825.66 |
|
600 |
58 |
2.03 |
20.70 |
24.87 |
1008.32 |
|
700 |
58 |
2.03 |
22.28 |
26.42 |
1161.27 |
|
750 |
58 |
2.03 |
23.09 |
27.20 |
1237.00 |
|
900 |
58 |
2.03 |
25.37 |
29.51 |
1465.69 |
|
1000 |
58 |
2.03 |
26.90 |
31.06 |
1618.65 |
5.Production Progress
6.Certificates:
 |
 |
7.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
