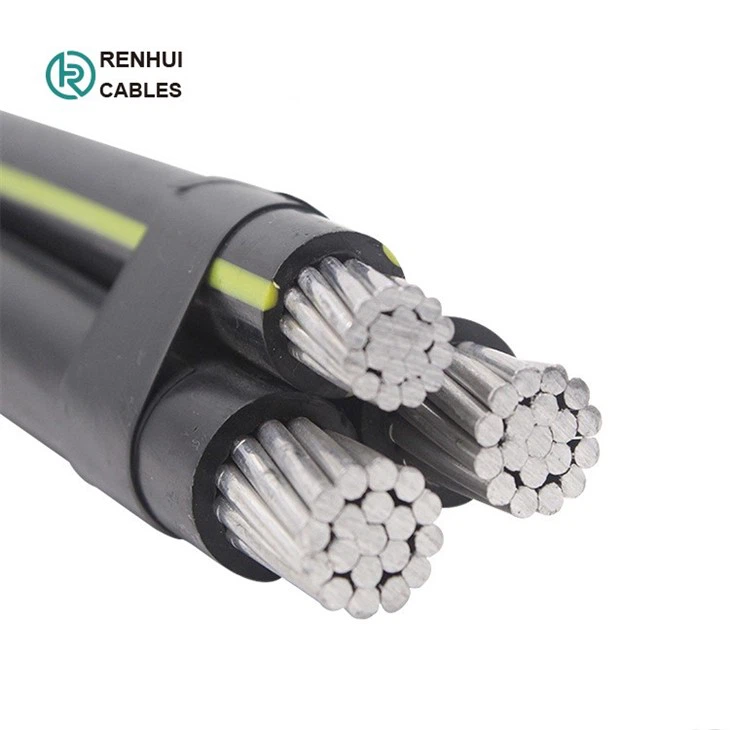

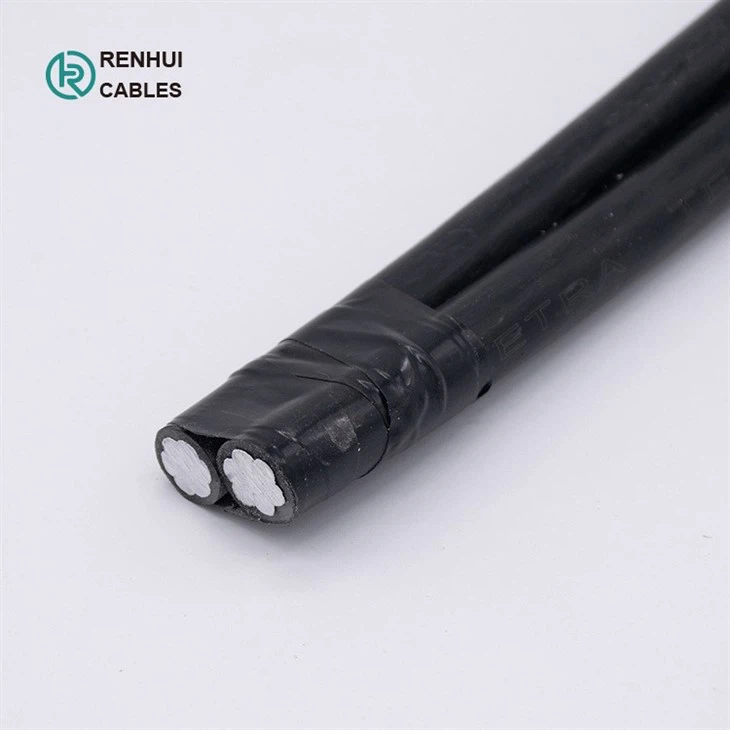

0.6/1kv Al XLPE/Aerial Bundled/ABC Cable for Aluminum
1.Product Description
This product is suitable for AC rated voltage (Uo / U) 1/10kv power distribution grid system.
1kv insulated overhead line adopt GB/T12527-2008 & GB/T1179-2008 standard.
10kv insulated overhead line adopt GB/T14049-2008 & GB/T1179-2008 standard.
2.Type, name,laying occasion
| Type | Laying occasion | ||
| Copper core | Aluminum core | Steel core(intensive)aluminum stranded core | |
| JKV | JKLV(BLVW) | JKLGV(BLVWG or BLGVW) | Aerial fixed laying lines or service wire,only for 0.6/1kv line. |
| JKYJ | JKLYJ | JKLGYJ | Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees. |
| JKYJ/Q | JKLYJ/Q | JKLGYJ/Q | Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact temporary with trees. |
| JKYJ/J | JKLYJ/J | JKLGYJ/J | Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees,allow low laying. |
3.Operating characteristic
1)rated voltage 0.6/1kv,10kv
2)max permissible continuous operating temperature of conductor:PVC insulated ≤70ºC.XLPE insulated ≤90ºC.
3)during short circuit(lasting less than 5s),the maximum temperature of the cable:PVC insulated is 160ºC;XLPE insulated should not exceed 250ºC.
4)laying temperature of cable should not less than -20ºC,cable should be preheated when below -20ºC.
5)bending radius:
-0.6/1kv
D<25mm,should not less than 4D;steel core( intensive) should not less than 6D.
D≥25mm,should not less than 6D;steel core(intensive) should not less than 10D.
-10kv
single core cable should not less than 20D,steel core strand should not less than 25D.
multi-core cable should not less than 15D,steel core strand should not less 20D.
4.Production Progress
5.Certificates:
 |
 |
6.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
