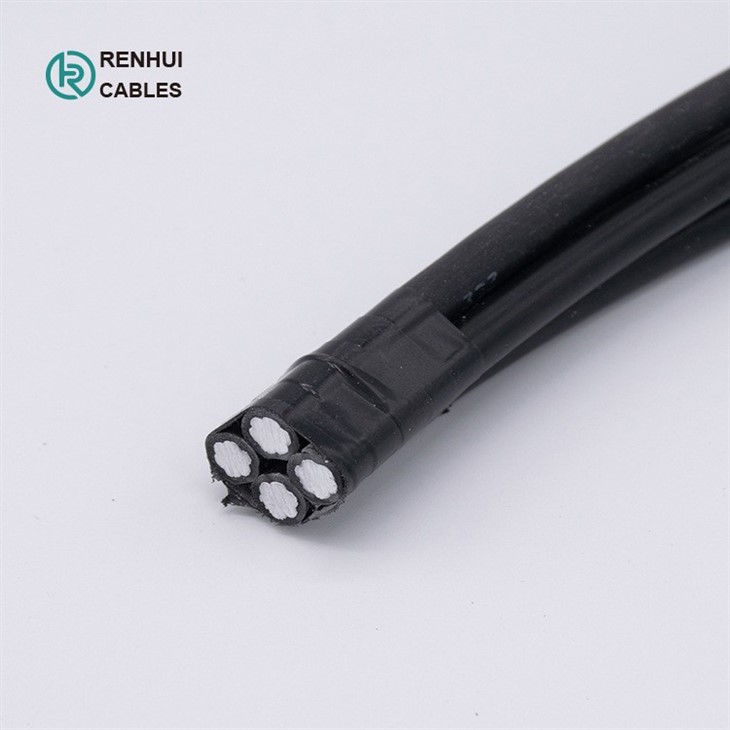

0.6/1kV Aerial Bundled Cables to BS 7870-5 (AL/XLPE)
1. Application
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V.
 |
 |
 |
 |
2.Standard
BS 7870-5:1999
3.Construction
Conductor: (for either phase, neutral or street lighting)
The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM).
Insulation:
XLPE. 1, 2 and 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50sqmm and a minimum of 16 ribs for cores above 50sqmm. In the case of five core bundles the surface of the protective core should be smooth.
Assembly:2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.
4. Technical Data
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV | 4 |
| Laying temperature | °C | min. -20 |
| Operating temperature | °C | -30 ~ +80 |
| Conductor temperature | °C | max. +80 |
| Short-circuit temperature | °C/s | max. +130 /5 |
| Bending radius (min.) | / | 18 × o of cable |
5.Dimensions
| number of cores x nominal cross section | max. conductor- resistance | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm^2 | Ohm/km | kN | A | mm | kg/km |
| 1x 16 RM | 1,910 | 2,5 | 72 | 8 | 74 |
| 1x 25 RM | 1,200 | 4,0 | 107 | 9 | 106 |
| 1x 35 RM | 0,868 | 5,5 | 132 | 10.5 | 138 |
| 1x 50 RM | 0,641 | 8,0 | 165 | 11.8 | 182 |
| 1x 70 RM | 0,443 | 10,7 | 205 | 13 | 252 |
| 1x 95 RM | 0,320 | 13,7 | 240 | 15.4 | 333 |
| 1x 120 RM | 0,253 | 18,6 | 290 | 17 | 408 |
| 1x 150 RM | 0,206 | 23,2 | 334 | 19 | 502 |
| 1x 185 RM | 0,164 | 28,7 | 389 | 21 | 611 |
| 1x 240 RM | 0,125 | 37,2 | 467 | 24 | 801 |
| 2x 16 RM | 1,910 | 2,5 | 72 | 15.6 | 147 |
| 2x 25 RM | 1,200 | 4,0 | 107 | 18 | 208 |
| 2x 35 RM | 0,868 | 5,5 | 132 | 20 | 277 |
| 2x 50 RM | 0,641 | 8,0 | 165 | 23.5 | 361 |
| 2x 70 RM | 0,443 | 10,7 | 205 | 25.4 | 505 |
| 2x 95 RM | 0,320 | 13,7 | 240 | 30.3 | 666 |
| 2x 150 RM | 0,206 | 23,2 | 334 | 38 | 1004 |
| 4x 16 RM | 1,910 | 2,5 | 72 | 18.8 | 286 |
| 4x 25 RM | 1,200 | 4,0 | 107 | 21.2 | 430 |
| 4x 35 RM | 0,868 | 5,5 | 132 | 24.1 | 553 |
| 4x 50 RM | 0,641 | 8,0 | 165 | 27.8 | 746 |
| 4x 70 RM | 0,443 | 10,7 | 205 | 31.8 | 1009 |
| 4x 95 RM | 0,320 | 13,7 | 240 | 37.8 | 1332 |
| 4x 120 RM | 0,253 | 18,6 | 290 | 54.4 | 1632 |
| 4x 50 + 1x 25 RM | 0,641/1,200 | 8,0/4,0 | 165/107 | 31.9 | 814 |
| 4x 50 + 1x 35 RM | 0,641/0,868 | 8,5/5,5 | 165/132 | 31.9 | 845 |
| 4x 70 + 1x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 36 | 1105 |
| 4x 70 + 2x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 40 | 1217 |
| 4x 95 + 1x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 41.8 | 1438 |
| 4x 95 + 2x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 42 | 1544 |
| 4x120 + 1x 25 RM | 0,253/1,200 | 18,6/4,0 | 290/107 | 59 | 2050 |
6.Production Progress
7.Certificates:
 |
 |
8.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
