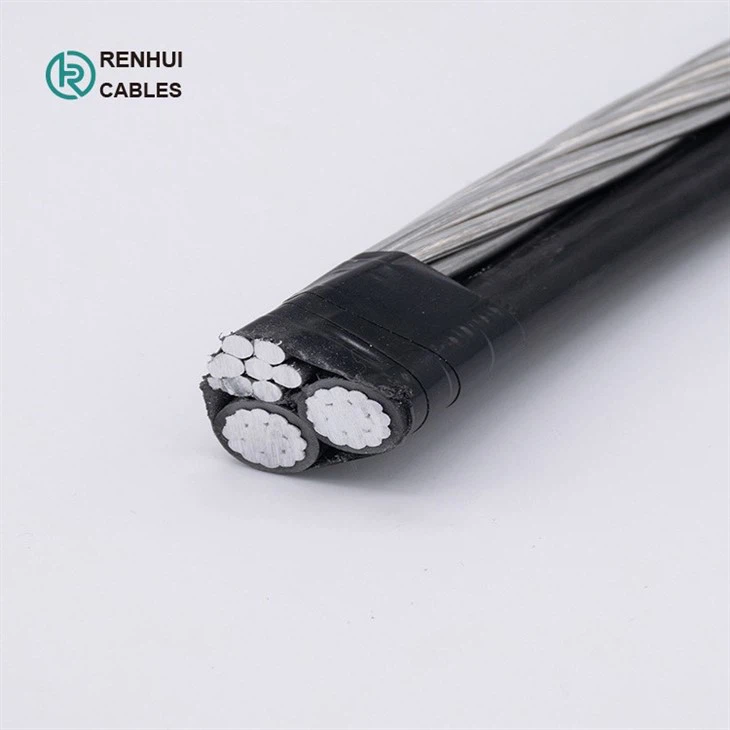

Low Medium Voltage Twisted Aerial Overhead ABC Cable
1.Application:
Aerial Bundled Cable(overhead cables)is applied for elelctric power distribution in low voltage metropolitan,suburban and rural networks,for public lighting and house connections.Laid on pillars and house fronts.
2.Standard :NFC 33-209
3.Construction :
1.Conductor: Stranded Aluminium wire conductor
2.Insulation:XLPE (cross-linked polyethylene)or PE (weather resistant)
3.Insulation Color: Black
4.Characteristic :
1.Temperature Rating:-20ºC up to +90ºC
2.Voltage Rating:600/1000V
3.Min inner bending radius:
Up to 25mm:4x overall diameter
Above 25mm:6x over diameter
4.Behaviour in fire: Flame retardant cable acc.to IEC60332-1
5.Technical Parameters:
|
No.of cores x Nominal section area |
Nominal Construction of conductor |
Nominal |
Nominal |
Nominal |
Max.Resistance of conductor |
|
No.X mm² |
No.X mm |
mm |
mm |
kg/km |
<=(Ω/km) |
|
16 |
7/1.70 |
1.2 |
7.2 |
66 |
1.910 |
|
25 |
7/2.14 |
1.2 |
8.4 |
94 |
1.200 |
|
35 |
7/2.52 |
1.4 |
9.8 |
130 |
0.868 |
|
50 |
19/1.78 |
1.4 |
11.1 |
175 |
0.641 |
|
70 |
19/2.14 |
1.4 |
12.8 |
235 |
0.443 |
|
95 |
19/2.52 |
1.6 |
14.8 |
317 |
0.320 |
|
120 |
37/2.03 |
1.6 |
16.2 |
390 |
0.253 |
|
150 |
37/2.25 |
1.8 |
18.2 |
486 |
0.206 |
|
2X16 |
2X7/1.70 |
1.2 |
7.2 |
132 |
1.910 |
|
2X25 |
2X7/2.14 |
1.2 |
8.4 |
188 |
1.200 |
|
2X35 |
2X7/2.52 |
1.4 |
9.8 |
260 |
0.868 |
|
2X50 |
2X19/1.78 |
1.4 |
11.1 |
350 |
0.641 |
|
2X70 |
2X19/2.14 |
1.4 |
12.8 |
470 |
0.443 |
|
2X95 |
2X19/2.52 |
1.6 |
14.8 |
634 |
0.320 |
|
2X120 |
2X37/2.03 |
1.6 |
16.2 |
780 |
0.253 |
|
2X150 |
2X37/2.25 |
1.8 |
18.2 |
972 |
0.206 |
|
4X16 |
4X7/1.70 |
1.2 |
7.2 |
264 |
1.910 |
|
4X25 |
4X7/2.14 |
1.2 |
8.4 |
376 |
1.200 |
|
4X35 |
4X7/2.52 |
1.4 |
9.8 |
520 |
0.868 |
|
4X50 |
4X19/1.78 |
1.4 |
11.1 |
700 |
0.641 |
|
4X70 |
4X19/2.14 |
1.4 |
12.8 |
940 |
0.443 |
|
4X95 |
4X19/2.52 |
1.6 |
14.8 |
1268 |
0.320 |
|
4X120 |
4X37/2.03 |
1.6 |
16.2 |
1560 |
0.253 |
|
4X150 |
4X37/2.25 |
1.8 |
18.2 |
1944 |
0.206 |
6.Production Progress
7.Certificates:
 |
 |
8.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
