Petroleum drilling and production equipment, loadable logging cable
1. Description:Logging Cable
This product is applicable to all types of oil and gas well logging, perforation, coring and paraffin oil wells, viscosity, pour point and so on. It's such a kind of oil field exploration armored steel cable which could bear all the above mentioned mechanical load.

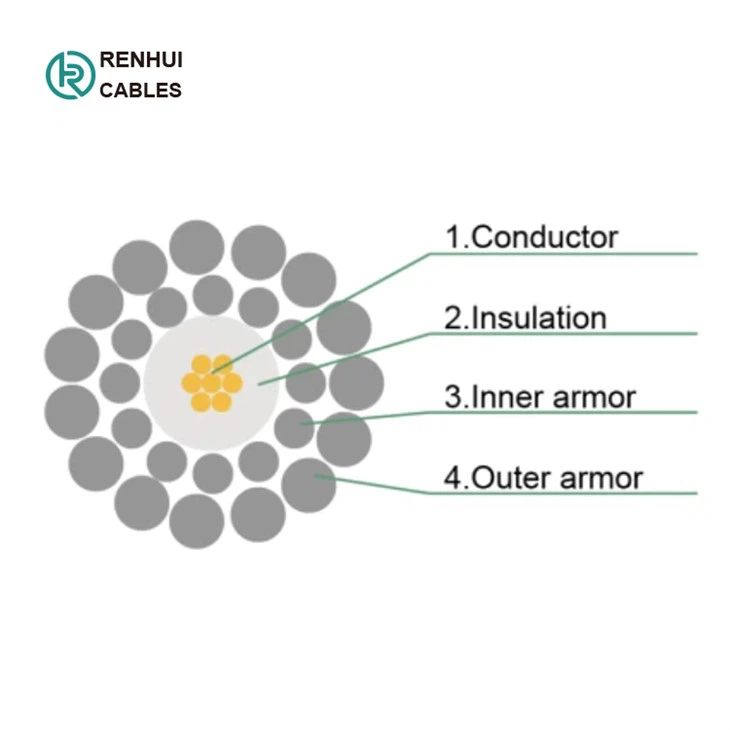

2.Cable drawing:Logging Cable
3.Production type:Logging Cable
-Series Code:
a) W -- Logging Cable.
b) WMF-- Sealed Logging Cable.
-Number of cable cores:
a) GS core -- One core
b) 3 -- 3 cores.
c) 4 -- 4 cores.
d) 5 -- 5 cores.
e) 7 -- 7 cores.
-Insulation material code:
a) B -- Modified polypropylene insulation.
b) F40 -- Tetrafluoroethylene-ethylene copolymer insulation.
c) F46 -- Poly perfluoroethylene insulation.
d) PFA -- Tetrafluoroethylene-perfluoroalkyl vinyl ether copolymer insulation.
-Shield code:
a) P -- Overall shielding
b) PP --individual shielding Overall shielding
-Feature code:
a) FF -- steel armor anti-corrosion
b) FD -- conductor plugging
c) HS -- high strength.
d) X -- stainless steel (carbon steel omitted).
-The product representation method is as follows:
4. Specification Datasheet
Logging Cable
|
Specification
|
Nominal Diameter (mm) |
Conductor nominal Cross section (mm²) |
Conductor structure No. / diameter (*/mm) |
Insulation thickness (mm) |
No. Of steel wire x diameter (* X mm)
|
|
|
Inner |
outer |
|||||
|
WGSB-3.2-1X0.24 |
3.2 |
0.24 |
7/0.21 |
0.45 |
14X0.40 |
16X0.50 |
|
WGSB-3.5-1X0.34 |
3.5 |
0.34 |
7/0.25 |
0.52 |
12X0.49 |
18X0.49 |
|
WGSB-4.7-1X0.56 |
4.7 |
0.56 |
7/0.32 |
0.56 |
12X0.61 |
15X0.76 |
|
WSB-4.7-4X0.22 |
4.7 |
0.22 |
7/0.20 |
0.19 |
18X0.47 |
18X0.64 |
|
WGSB-5.6-1X1.01 |
5.6 |
1.01 |
19/0.26 |
0.58 |
12X0.79 |
18X0.79 |
|
WGSB-5.6-1X1.35 |
5.6 |
1.35 |
19/0.30 |
0.55 |
15X0.61 |
15X0.91 |
|
WGSB-5.6-HS-1X1.35 |
5.6 |
1.35 |
19/0.30 |
0.53 |
15X0.61 |
18X0.89 |
|
WGSF46-5.6-1X1.01 |
5.6 |
1.01 |
19/0.26 |
0.58 |
12X0.79 |
18X0.79 |
|
WGSF46-5.6-1X1.35 |
5.6 |
1.35 |
19/0.30 |
053 |
15X0.61 |
15X0.89 |
|
WGSF46-5.6-HS-1X1.35 |
5.6 |
1.35 |
19/0.30 |
0.53 |
15X0.61 |
15X0.89 |
|
WGSF46-5.6-FF-1X1.00 |
5.6 |
1.00 |
19/0.26 |
0.58 |
12X0.79 |
18X0.79 |
|
W3BP-5.6-3X0.24 |
5.6 |
0.24 |
7/0.21 |
0.26 |
12X0.79 |
18X0.79 |
|
W3F46P-5.6-3X0.24 |
5.6 |
0.24 |
7/0.21 |
0.26 |
12X0.79 |
18X0.79 |
|
W4BP-5.6-4X0.24 |
5.6 |
0.24 |
7/0.21 |
0.30 |
18X0.56 |
18X0.79 |
|
W4F46P-5.6-4X0.24 |
5.6 |
0.24 |
7/0.21 |
0.30 |
18X0.56 |
18X0.79 |
5. Certificates: Logging Cable
 |
 |
6.Packing, Logging Cable
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
