1.Application:

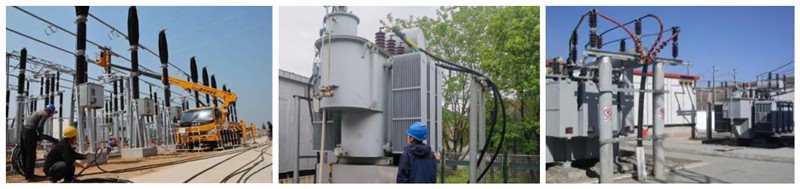

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals,in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

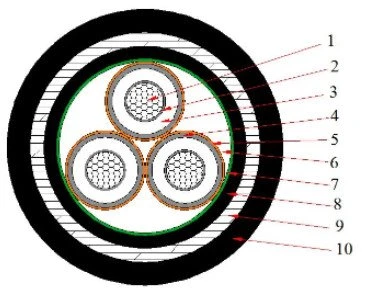

2.Construction:

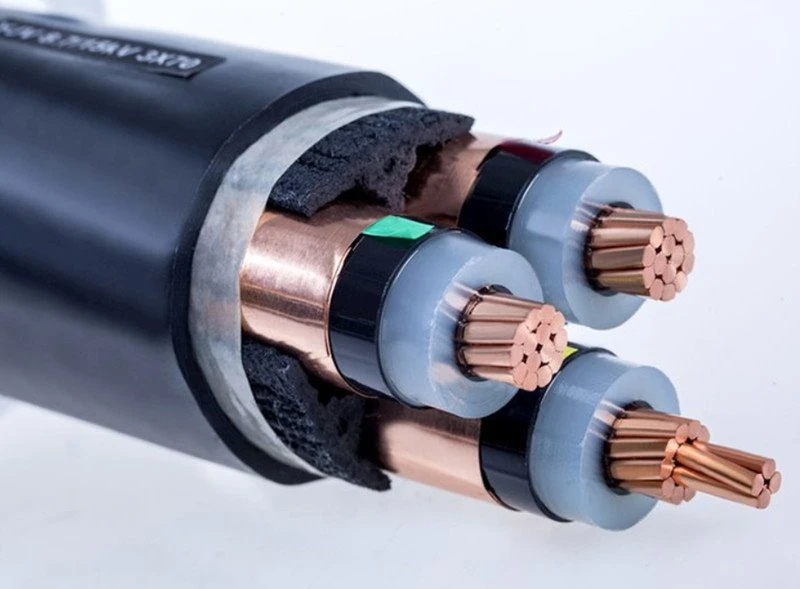

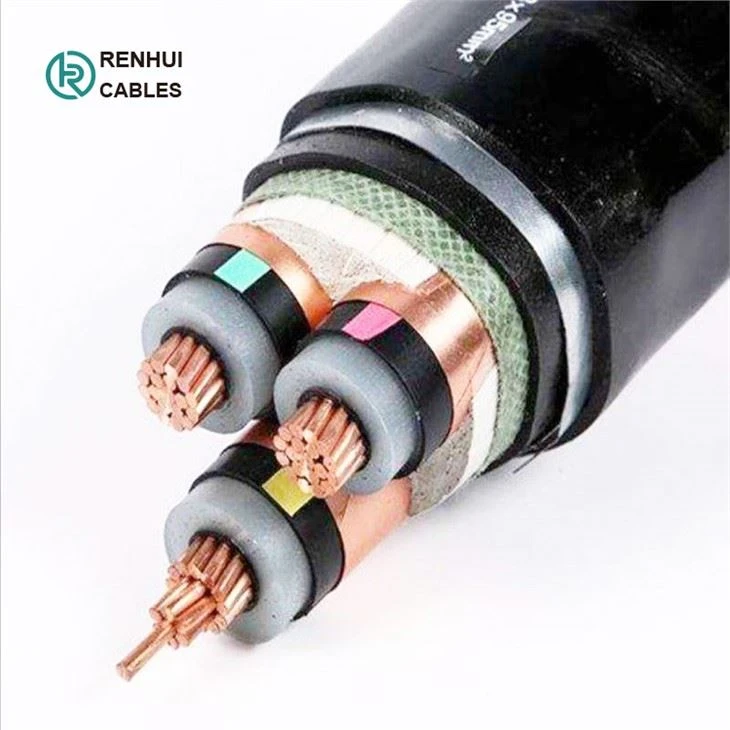

Conductor: Copper ,Class 1 or Class 2,solid or stranded Circular conductors Conductor screen: Non-metallic,semi-conducting compound |
|
3.Product Standard
This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS, DIN, ICEA standard as customer request.
IEC 60228 Conductors of insulate cables
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV (Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV).
4.Type and Name
| Type | Designation | Applications |
YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
5.Technical parameter
No. of cores and nominal cross section | Thickness of Insulation | Thickness of Steel Tape | Thickness of | Approx. | Approx. weight | Max. DC resistance of conductor(20ºC) | Current carrying capacity | ||
(mm²) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air | In Ground | |
YJV22 (N2XSEBY) - 6/10kV | |||||||||
3X25 | 3.4 | 0.5 | 2.3 | 43.1 | 2803 | 0.727 | 120 | 135 | |
3X35 | 3.4 | 0.5 | 2.4 | 45.5 | 3229 | 0.524 | 145 | 165 | |
3X50 | 3.4 | 0.5 | 2.5 | 48.5 | 3773 | 0.387 | 170 | 190 | |
3X70 | 3.4 | 0.5 | 2.6 | 52.3 | 4612 | 0.268 | 210 | 240 | |
3X95 | 3.4 | 0.5 | 2.7 | 56.0 | 5582 | 0.193 | 265 | 285 | |
3X120 | 3.4 | 0.5 | 2.9 | 59.4 | 6513 | 0.153 | 300 | 320 | |
3X150 | 3.4 | 0.5 | 3.0 | 62.9 | 7494 | 0.124 | 340 | 365 | |
3X185 | 3.4 | 0.5 | 3.1 | 66.7 | 8802 | 0.0991 | 390 | 410 | |
3X240 | 3.4 | 0.5 | 3.3 | 71.9 | 10742 | 0.0754 | 455 | 480 | |
3X300 | 3.4 | 0.5 | 3.4 | 76.8 | 12747 | 0.0601 | 520 | 540 | |
3X400 | 3.4 | 0.8 | 3.7 | 84.5 | 16436 | 0.0470 | 600 | 610 | |
YJV22 (N2XSEBY) - 8.7/15kV | |||||||||
3X25 | 4.5 | 0.5 | 2.5 | 49.6 | 3297 | 0.727 | 125 | 135 | |
3X35 | 4.5 | 0.5 | 2.6 | 52.0 | 3743 | 0.524 | 150 | 165 | |
3X50 | 4.5 | 0.5 | 2.7 | 55.2 | 4338 | 0.387 | 180 | 190 | |
3X70 | 4.5 | 0.5 | 2.8 | 59.1 | 5211 | 0.268 | 220 | 240 | |
3X95 | 4.5 | 0.5 | 2.9 | 62.9 | 6243 | 0.193 | 265 | 285 | |
3X120 | 4.5 | 0.5 | 3.0 | 66.4 | 7209 | 0.153 | 310 | 320 | |
3X150 | 4.5 | 0.5 | 3.1 | 69.8 | 8221 | 0.124 | 350 | 365 | |
3X185 | 4.5 | 0.5 | 3.3 | 74.1 | 9634 | 0.0991 | 400 | 410 | |
3X240 | 4.5 | 0.5 | 3.4 | 79.2 | 11629 | 0.0754 | 465 | 480 | |
3X300 | 4.5 | 0.8 | 3.6 | 85.8 | 14591 | 0.0601 | 535 | 540 | |
3X400 | 4.5 | 0.8 | 3.9 | 93.1 | 17645 | 0.0470 | 615 | 610 | |
No. of cores and nominal cross section | Thickness of Insulation | Thickness of Steel Tape | Thickness of | Approx. | Approx. weight | Max. DC resistance of conductor(20ºC) | Current carrying capacity | ||
(mm²) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air | In Ground | |
YJV22 (N2XSEBY) - 12/20kV | |||||||||
3X35 | 5.5 | 0.5 | 2.8 | 57.1 | 4102 | 0.524 | 150 | 160 | |
3X50 | 5.5 | 0.5 | 2.9 | 59.7 | 4658 | 0.387 | 180 | 190 | |
3X70 | 5.5 | 0.5 | 3.0 | 64.0 | 5566 | 0.268 | 220 | 235 | |
3X95 | 5.5 | 0.5 | 3.1 | 68.0 | 6623 | 0.193 | 265 | 285 | |
3X120 | 5.5 | 0.5 | 3.3 | 71.2 | 7602 | 0.153 | 310 | 320 | |
3X150 | 5.5 | 0.5 | 3.4 | 74.6 | 8692 | 0.124 | 350 | 365 | |
3X185 | 5.5 | 0.5 | 3.5 | 78.6 | 10045 | 0.0991 | 400 | 410 | |
3X240 | 5.5 | 0.8 | 3.7 | 85.6 | 12911 | 0.0754 | 465 | 475 | |
3X300 | 5.5 | 0.8 | 3.9 | 90.4 | 15196 | 0.0601 | 535 | 535 | |
3X400 | 5.5 | 0.8 | 4.1 | 97.4 | 18181 | 0.0470 | 615 | 605 | |
YJV22 (N2XSEBY) - 18/30kV | |||||||||
3X35 | 8.0 | 0.5 | 3.2 | 69.1 | 5271 | 0.524 | 172 | 154 | |
3X50 | 8.0 | 0.5 | 3.3 | 71.8 | 5867 | 0.387 | 205 | 181 | |
3X70 | 8.0 | 0.5 | 3.4 | 76.0 | 6836 | 0.268 | 253 | 220 | |
3X95 | 8.0 | 0.8 | 3.6 | 81.3 | 8736 | 0.193 | 307 | 263 | |
3X120 | 8.0 | 0.8 | 3.7 | 84.5 | 9792 | 0.153 | 352 | 298 | |
3X150 | 8.0 | 0.8 | 3.8 | 87.9 | 10964 | 0.124 | 397 | 332 | |
3X185 | 8.0 | 0.8 | 3.9 | 91.9 | 12416 | 0.0991 | 453 | 374 | |
3X240 | 8.0 | 0.8 | 4.1 | 97.6 | 14595 | 0.0754 | 529 | 431 | |
3X300 | 8.0 | 0.8 | 4.2 | 102.9 | 16978 | 0.0601 | 599 | 482 | |
3X400 | 8.0 | 0.8 | 4.5 | 109.4 | 20038 | 0.0470 | 683 | 541 | |
7.Production Progress
8.Certificates:
 |
 |
9.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
