Application: 6/10kV N2XSY Cables
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.
 |
 |
 |
Standard:6/10kV N2XSY Cables
DIN VDE 0276-620, HD 620, EN 60228 Flame Retardant according to IEC/EN 60332-1-2
Technical Characteristic: 6/10kV N2XSY Cables
Voltage Rating (Uo/U)(Um): 6/10 (12)kV
Test Voltage: 21kV
Temperature Rating:
Fixed: -20°C to +70°C
Flexed: -5°C to +70°C
Short Circuit Temperature: +250°C
Minimum Bending Radius: 15 x overall diameter

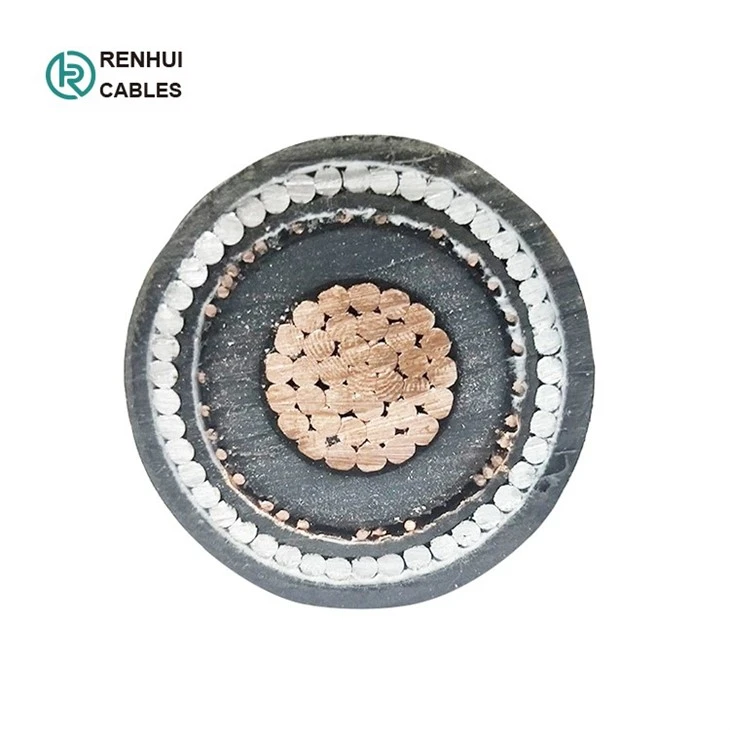

Cable Structure: 6/10kV N2XSY Cables
Conductor: Compacted copper conductor,class2
Conductor screen: Semi-conductive material
Insulation: XLPE (Cross-Linked Polyethylene)
Insulation screen: Semi-conductive material
Screen: Copper wires with copper tape wrapping ( or copper tape screen)
Sheath: PVC (HDPE)
Sheath Colour: Red
Technical datasheet: 6/10kV N2XSY Cables
Production Progress
Certificates:
 |
 |
Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
