300/500V H05RR-F Cable
1. Application, 300/500V H05RR-F Cable
Lightweight rubber hose for connection of electrical appliances at low to medium mechanical stress in the home and office in dry and wet rooms but not suitable for permanent outdoor use.
 |
 |
 |

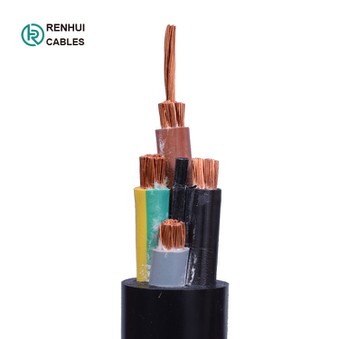

2. Cable Drawing, 300/500V H05RR-F Cable
 |
 |
 |
 |
 |
 |
3.Construction, 300/500V H05RR-F Cable
-Conductor:Flexible copper conductor class 5
-Insulation :Ethylene propylene rubber insulation
-Filler: filling rope (According to production requirements )
-Wrapping tape
-Outer sheath：Rubber sheath
4.Specification, 300/500V H05RR-F Cable
1 Core：1.0~400mm2
2 Cores：1.0~95mm2
3~5 Cores：1.0~150mm2
3+1 Cores：2.5~150mm2
3+2 Cores：2.5~150mm2
4+1 Cores：2.5~150mm2
5.Core identification, 300/500V H05RR-F Cable
1 Core：Grey (Black)
2 Cores: Brown, blue
3 Cores ：Brown, blue,Yellow/green
4 Cores, 3+1 Cores：Brown, blue,Grey, Yellow/green
5cores, 3+2Cores, 4+1 Cores ：Brown, Blue, Black, Grey, Yellow/green
6.Technical data, 300/500V H05RR-F Cable
Rate voltage (U0/U):300/500V
Max voltage(Um)：1.1U
Max. Conductor operation temperature导：+60℃
Working environment temperature：-20℃~+45℃
Cable Laying temperature ：≥0℃
Min. Bending diameter：6D
Test voltage：2.5KV/5min
7.Data sheet, 300/500V H05RR-F Cable
|
Specification (mm2) |
Conductor diameter (mm) |
Insulation thickness (mm) |
Outer sheath thickness (mm) |
Approx. Diameter (mm) |
Approx Weight (kg/km) |
|
3x1 |
1.2 |
0.8 |
1.4 |
8.3~10.7 |
122 |
|
3x1.5 |
1.5 |
0.8 |
1.6 |
9.2~11.9 |
160 |
|
3x2.5 |
2.0 |
0.9 |
1.8 |
10.9~14.0 |
225 |
|
3x4 |
2.5 |
1.0 |
1.9 |
12.7~16.2 |
306 |
|
3x6 |
3.2 |
1.0 |
2.1 |
14.1~18.0 |
408 |
|
3x10 |
4.3 |
1.2 |
3.3 |
19.1~24.2 |
758 |
|
3x16 |
5.3 |
1.2 |
3.5 |
21.8~27.6 |
1014 |
|
3x25 |
7.0 |
1.4 |
3.8 |
26.1~33.0 |
1473 |
|
3x35 |
8.0 |
1.4 |
4.1 |
29.3~37.1 |
1870 |
|
3x50 |
9.6 |
1.6 |
4.5 |
34.1~42.9 |
2509 |
|
3x70 |
11.5 |
1.6 |
4.8 |
38.4~48.3 |
3362 |
|
3x95 |
13.3 |
1.8 |
5.3 |
43.3~54.0 |
4476 |
|
3x120 |
15.0 |
1.8 |
5.6 |
47.3~60.0 |
5355 |
|
3x150 |
16.8 |
2.0 |
6.0 |
52.0~66.0 |
6626 |
8.Production Progress
9.Certificates:
 |
 |
10.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
