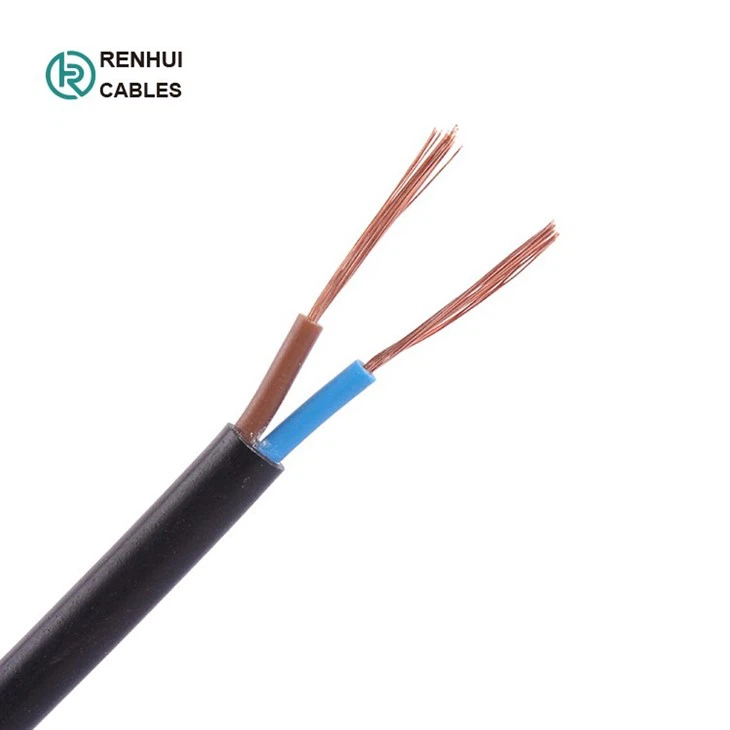

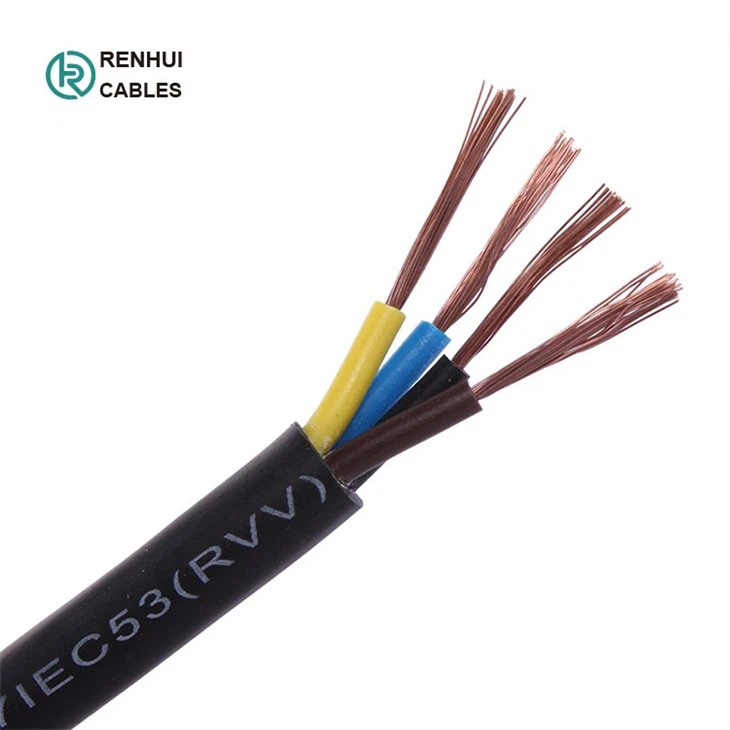

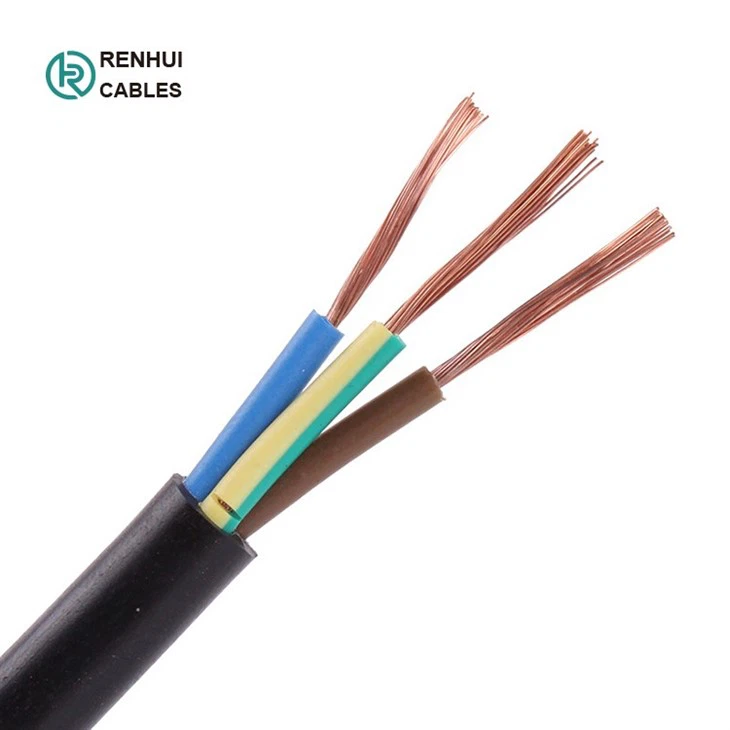

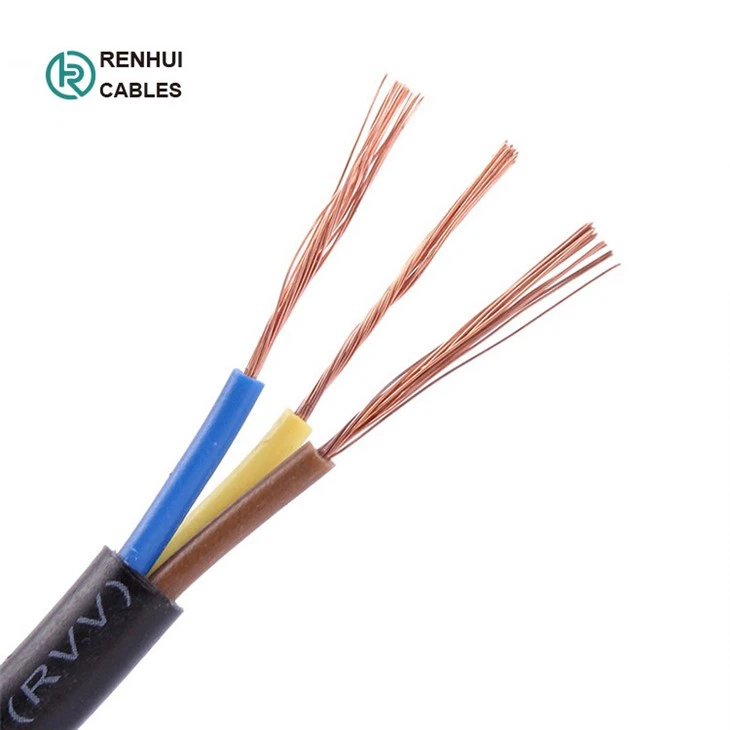

NYSLY-J Control Cable
1.Application, NYSLY-J Flexible Control Cable:
NYSLY-J cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air.
NYSLY-J are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines. These cables are not effected to the chemical influences. Cables for moist and wet rooms, specially used for machines in breweries, bottling plants and car washing stations.
NYSLY-J cables may be allowed to move once installed provided that the cables are not mechanically stressed during movement.
 |
 |
 |
2.Standards, NYSLY-J Flexible Control Cable:
IEC 60227( BS 6004 or VDE 0250 )
3.Cable Structure, NYSLY-J Flexible Control Cable:
 |
 |
-Rated voltage : 300/500 V
- Conductor : Bare ( or Tinned ) Flexible Annealed Copper
- Insulation : PVC
-Jacket: PVC
-Number Of Wire : 2-61 core
-Nominal Cross Section Area : 0.5 to 2.5 mm2
-According to : IEC 60227( BS 6004 or VDE 0250 )
-Flame retardant: Acc. to IEC 60332-1
4.Cable Datasheet, NYSLY-J Flexible Control Cable:
| Cross Section | No. Dia Strands | Insulation Thickness | Sheath Thickness | Mean Overall dia | Max , T=20c Resistance | Current Capacity | APP. Weight |
| (mm۲) | (mm) | (mm) | (mm) | (mm) | (Ω/km) | Amp/T=25oC | (kg/km) |
| 2×0.5 | 16×0.20 | 0.6 | 0.7 | 6 | 39 | 5 | 42 |
| 2×0.75 | 24×0.20 | 0.6 | 0.8 | 6.6 | 26 | 12 | 52 |
| 2×1.0 | 32×0.20 | 0.6 | 0.8 | 6.8 | 19.5 | 15 | 60 |
| 2×1.5 | 30×0.25 | 0.7 | 0.8 | 7.2 | 13.3 | 19 | 81 |
| 2×2.25 | 50×0.25 | 0.8 | 0.9 | 9.4 | 7.98 | 26 | 128 |
| 3×0.5 | 16×0.20 | 0.6 | 0.7 | 6.3 | 39 | 5 | 50 |
| 3×0.75 | 24×0.20 | 0.6 | 0.8 | 7 | 26 | 12 | 62 |
| 3×1.0 | 32×0.20 | 0.6 | 0.8 | 7.2 | 19.5 | 15 | 75 |
| 3×1.5 | 30×0.25 | 0.7 | 0.9 | 7.7 | 13.3 | 19 | 103 |
| 3×2.5 | 50×0.25 | 0.8 | 1 | 10.2 | 7.98 | 26 | 155 |
| 4×0.5 | 16×0.20 | 0.6 | 0.8 | 7 | 39 | 5 | 65 |
| 4×0.75 | 24×0.20 | 0.6 | 0.8 | 7.6 | 26 | 12 | 75 |
| 4×1.0 | 32×0.20 | 0.6 | 0.8 | 8 | 19.5 | 15 | 90 |
| 4×1.5 | 30×0.25 | 0.7 | 0.9 | 8.8 | 13.3 | 19 | 125 |
| 4×2.5 | 50×0.25 | 0.8 | 1.1 | 11.1 | 7.98 | 26 | 192 |
| 5×0.5 | 16×0.20 | 0.6 | 0.8 | 7.7 | 39 | 5 | 76 |
| 5×0.75 | 24×0.20 | 0.6 | 0.9 | 8.5 | 26 | 12 | 96 |
| 5×1.0 | 32×0.20 | 0.6 | 0.9 | 8.8 | 19.5 | 15 | 115 |
| 5×1.5 | 30×0.25 | 0.7 | 1 | 9.2 | 13.3 | 19 | 155 |
| 5×2.5 | 50×0.25 | 0.8 | 1.1 | 12.3 | 7.98 | 26 | 230 |
| 7×0.5 | 16×0.20 | 0.6 | 0.9 | 9.5 | 39 | 5 | 98 |
| 7×0.75 | 24×0.20 | 0.6 | 1 | 10.4 | 26 | 12 | 125 |
| 7×1.0 | 32×0.20 | 0.6 | 1 | 11 | 19.5 | 15 | 150 |
| 7×1.5 | 30×0.25 | 0.7 | 1.2 | 10.8 | 13.3 | 19 | 205 |
| 7×2.5 | 50×0.25 | 0.8 | 1.3 | 13.5 | 7.98 | 26 | 310 |
| 12×0.5 | 16×0.20 | 0.6 | 1.1 | 11.5 | 39 | 5 | 170 |
| 12×0.75 | 24×0.20 | 0.6 | 1.1 | 12.2 | 26 | 12 | 205 |
| 12×1.0 | 32×0.20 | 0.6 | 1.2 | 13.2 | 19.5 | 15 | 255 |
| 12×1.5 | 30×0.20 | 0.7 | 1.3 | 14 | 13.3 | 19 | 340 |
| 12×2.5 | 50×0.25 | 0.8 | 1.5 | 18.4 | 7.98 | 26 | 520 |
| 18×0.5 | 16×0.20 | 0.6 | 1.2 | 12.9 | 39 | 5 | 230 |
| 18×0.75 | 24×0.20 | 0.6 | 1.3 | 14.4 | 26 | 12 | 288 |
| 18×1.0 | 32×0.20 | 0.6 | 1.3 | 15.5 | 19.5 | 15 | 348 |
| 18×1.5 | 30×0.25 | 0.7 | 1.5 | 18 | 13.3 | 19 | 480 |
| 18×2.5 | 50×0.25 | 0.8 | 1.8 | 22.1 | 7.98 | 26 | 748 |
| 27×0.5 | 16×0.20 | 0.6 | 1.4 | 16.5 | 39 | 5 | 355 |
| 27×0.75 | 24×0.20 | 0.6 | 1.5 | 18 | 26 | 12 | 435 |
| 27×1.0 | 32×0.20 | 0.6 | 1.5 | 19 | 19.5 | 15 | 529 |
| 27×1.5 | 30×0.25 | 0.7 | 1.8 | 21 | 13.3 | 19 | 732 |
| 27×2.25 | 50×0.25 | 0.8 | 2.1 | 24.5 | 7.98 | 26 | 1133 |
| 36×0.5 | 16×0.20 | 0.6 | 1.5 | 18.5 | 39 | 5 | 445 |
| 36×0.75 | 24×0.20 | 0.6 | 1.6 | 19.6 | 26 | 12 | 559 |
| 36×1.0 | 32×0.20 | 0.6 | 1.7 | 21.6 | 19.5 | 15 | 675 |
| 36×1.5 | 30×0.25 | 0.7 | 2 | 23.2 | 13.3 | 19 | 930 |
| 36×2.5 | 50×0.25 | 0.8 | 2.3 | 30 | 7.98 | 26 | 1450 |
5.Production Progress
6.Certificates:
 |
 |
7.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
