Low Smoke Zero Halogen Control Cable
video
Low Smoke Zero Halogen Control Cable

Low Smoke Zero Halogen Control Cable

Low Smoke Zero Halogen (LSZH) cables for use in applications where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.
Send Inquiry
Chat Now
Download Catalog
CE Certificate-Renhui
ISO9001-Renhui
Description

1.Application (Low Smoke Zero Halogen Control Cable):
Low Smoke Zero Halogen (LSZH) cables for use in applications where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.

1__


2.Standards(Low Smoke Zero Halogen Control Cable):
BS 6724, BS EN/IEC 60228, BS EN/IEC 60754-1/2, BS EN 50267-2-1, BS EN/IEC 60502-1, BS EN/IEC 61034-2
Flame Retardant according to BS EN/IEC 60332-1-2, BS EN/ IEC 60332-3-24 Cat C

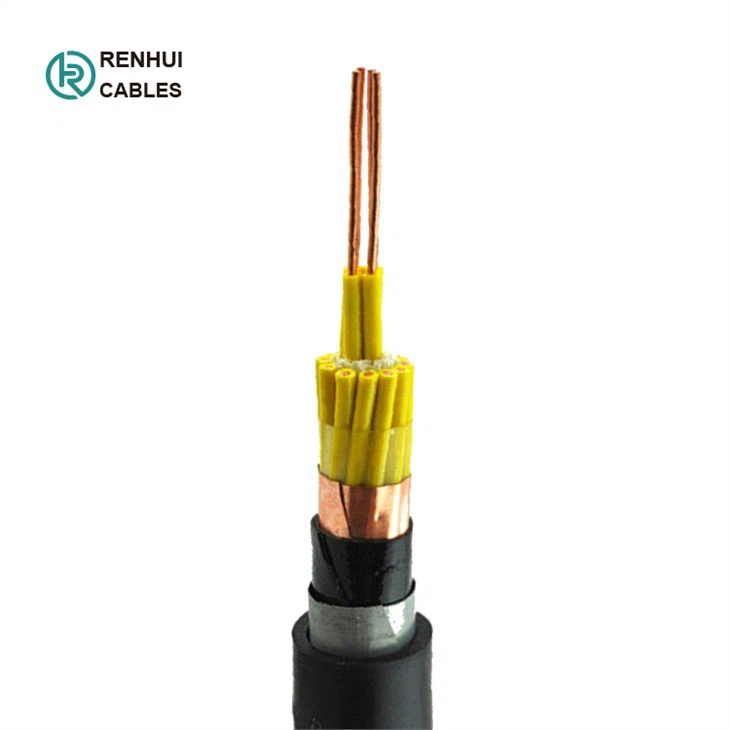

3.Construction (Low Smoke Zero Halogen Control Cable):
- Bare annealed copper conductors meeting requirements of class 1 per EN 60228 standard,
- Black cross-linked polyethylene (XLPE) insulation or LSZH insulation.
- Insulated conductors laid-up in layers,
- Cable core wrapped in polyester tape,
- Black LSZH cable covering, other colors also available.


4.Cable Parameters(Low Smoke Zero Halogen Control Cable):

Number of cores×Nominal cross section
mm²

Nominal thickness of insulation
mm

Nominal sheath thickness
mm

Average overall diameter
mm

Max.DC resistance of conductor at 20 ℃
Ω/km

Approx. Weight of cable
kg/km

Limit

Caps

2×0.75
2×1.0
2×1.5
2×2.5
2×4
2×6
2×10

0.6
0.6
0.7
0.8
0.8
0.8
1.0

1.2
1.2
1.2
1.2
1.2
1.2
1.7

6.7
7.0
7.9
9.0
9.9
10.8
14.3

8.1
8.5
9.5
10.9
11.9
13.1
17.3

24.5
18.1
12.1
7.41
4.61
3.08
1.83

62.8
70.2
88.5
124.3
160.2
211.3
362.8

3×0.75
3×1.0
3×1.5
3×2.5
3×4
3×6
3×10

0.6
0.6
0.7
0.8
0.8
0.8
1.0

1.2
1.2
1.2
1.2
1.2
1.5
1.7

7.1
7.4
8.3
9.5
10.5
11.5
15.2

8.5
8.9
10.0
11.5
12.7
13.9
18.4

24.5
18.1
12.1
7.41
4.61
3.08
1.83

78.3
88.5
113.7
156.9
208.5
300.4
487.4

4×0.75
4×1.0
4×1.5
4×2.5
4×4
4×6
4×10

0.6
0.6
0.7
0.8
0.8
0.8
1.0

1.2
1.2
1.2
1.2
1.5
1.5
1.7

7.6
7.9
9.0
10.4
11.4
13.2
16.6

9.2
9.6
10.9
12.5
13.8
15.9
20.1

24.5
18.1
12.1
7.41
4.61
3.08
1.83

93.2
106.3
138.7
202.2
283.9
385.4
615.6

5×0.75
5×1.0
5×1.5
5×2.5
5×4
5×6
5×10

0.6
0.6
0.7
0.8
0.8
0.8
1.0

1.2
1.2
1.2
1.5
1.5
1.5
1.7

8.2
8.6
9.7
11.3
13.0
14.3
18.2

9.9
10.3
11.7
13.6
15.7
17.3
22.0

24.5
18.1
12.1
7.41
4.61
3.08
1.83

106.3
122.5
162.1
253.5
344.3
454.3
750.2

7×0.75
7×1.0
7×1.5
7×2.5
7×4
7×6
7×10

0.6
0.6
0.7
0.8
0.8
0.8
1.0

1.2
1.2
1.2
1.5
1.5
1.5
1.7

8.8
9.2
10.5
12.8
14.1
15.6
20.3

10.6
11.1
12.7
15.5
17.1
18.8
24.5

24.5
18.1
12.1
7.41
4.61
3.08
1.83

129.2
151.1
204.4
317.0
433.8
585.0
963.0

8×0.75
8×1.0
8×1.5
8×2.5
8×4
8×6
8×10

0.6
0.6
0.7
0.8
0.8
0.8
1.0

1.2
1.2
1.5
1.5
1.5
1.7
1.7

9.7
10.2
11.7
14.3
15.8
17.4
22.8

11.7
12.3
14.1
17.2
19.0
21.0
27.5

24.5
18.1
12.1
7.41
4.61
3.08
1.83

144.6
169.4
247.6
357.0
490.1
679.3
1076.8

10×0.75
10×1.0
10×1.5
10×2.5
10×4
10×6

0.6
0.6
0.7
0.8
0.8
0.8

1.5
1.5
1.5
1.5
1.7
1.7

10.8
11.4
13.7
16.0
17.8
20.1

13.1
13.8
16.6
19.4
21.5
24.2

24.5
18.1
12.1
7.41
4.61
3.08

193.4
225.2
303.2
439.5
623.3
849.1


5.Production Progress

05



03



02



06



6.Certificates:

CE ISO9001



7.Packing:

-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:

Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
