1.Application
Flame retardant, LSZH power, control and signalling cables,insulated in type G7 elastomeric compound and pvc sheathed with flexible conductors for fixed installation.
 |
 |
 |
 |

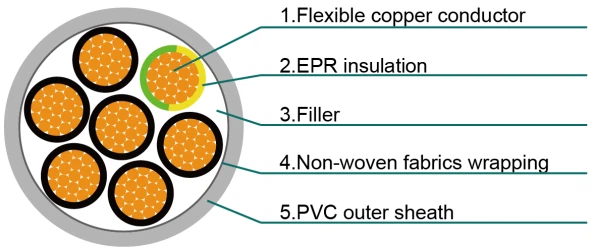

2.Construction:
|
1.Flexible copper conductor class 5 4.Non-woven fabrics wrapping tape 5.PVC outer sheath (Grey or Black) |
 |
3.Characteristics:
Rated voltage: 0.6/1 KV
Operating Temperature: -25°C - +90° C on the conductor
Max. temperature of short circuit: 250° C on the conductor (max. duration 5 seconds)
4.Technical Data Sheet
| Specification | Max diam. | Insulation | sheath thickness | Outer diameter | Max cond. resist. | Cable weight |
| conductor | thickness | at 20℃ | ||||
| mm2 | mm | mm | mm | mm | ohms/km | kg/km |
| 1x1.5 | 0.26 | 0.7 | 1.4 | 6 | 13.3 | 55 |
| 1x2.5 | 0.26 | 0.7 | 1.4 | 6.4 | 7.98 | 65 |
| 1x4 | 0.31 | 0.7 | 1.4 | 6.9 | 4.95 | 85 |
| 1x6 | 0.31 | 0.7 | 1.4 | 7.5 | 3.3 | 105 |
| 1x10 | 0.41 | 0.7 | 1.4 | 8.4 | 1.91 | 155 |
| 1x16 | 0.41 | 0.7 | 1.4 | 9.6 | 1.21 | 210 |
| 1x25 | 0.41 | 0.9 | 1.4 | 11.2 | 0.78 | 310 |
| 1x35 | 0.41 | 0.9 | 1.4 | 12.2 | 0.554 | 410 |
| 1x50 | 0.41 | 1 | 1.4 | 13.9 | 0.386 | 560 |
| 1x70 | 0.51 | 1.1 | 1.4 | 16 | 0.272 | 770 |
| 1x95 | 0.51 | 1.1 | 1.5 | 17.7 | 0.206 | 990 |
| 1x120 | 0.51 | 1.2 | 1.5 | 19.7 | 0.161 | 1250 |
| 1x150 | 0.51 | 1.4 | 1.6 | 21.8 | 0.129 | 1550 |
| 1x185 | 0.51 | 1.6 | 1.6 | 23.9 | 0.106 | 1900 |
| 1x240 | 0.51 | 1.7 | 1.7 | 26.4 | 0.0801 | 2450 |
| 1x300 | 0.51 | 1.8 | 1.8 | 28.9 | 0.0641 | 3000 |
| 1x400 | 0.51 | 1.9 | 1.9 | 35 | 0.0486 | 4000 |
| 1x500 | 0.51 | 2.2 | 2.1 | 39.5 | 0.0384 | 5000 |
| 1x630 | 0.51 | 2.4 | 2.2 | 44 | 0.0287 | 6600 |
| 2x1.5 | 0.26 | 0.7 | 1.8 | 10.1 | 13.3 | 155 |
| 2x2.5 | 0.26 | 0.7 | 1.8 | 10.9 | 7.98 | 190 |
| 2x4 | 0.31 | 0.7 | 1.8 | 11.9 | 4.95 | 240 |
| 2x6 | 0.31 | 0.7 | 1.8 | 13.1 | 3.3 | 310 |
| 2x10 | 0.41 | 0.7 | 1.8 | 15.3 | 1.91 | 460 |
| 2x16 | 0.41 | 0.7 | 1.8 | 17.3 | 1.21 | 620 |
| 2x25 | 0.41 | 0.9 | 1.8 | 20.5 | 0.78 | 900 |
| 2x35 | 0.41 | 0.9 | 1.8 | 22.9 | 0.554 | 1200 |
| 2x50 | 0.41 | 1 | 1.8 | 26.1 | 0.386 | 1650 |
| 3x1.5 | 0.26 | 0.7 | 1.8 | 10.6 | 13.3 | 175 |
| 3x2.5 | 0.26 | 0.7 | 1.8 | 11.4 | 7.98 | 220 |
| 3x4 | 0.31 | 0.7 | 1.8 | 12.5 | 4.95 | 280 |
| 3x6 | 0.31 | 0.7 | 1.8 | 13.8 | 3.3 | 365 |
| 3x10 | 0.41 | 0.7 | 1.8 | 16.2 | 1.91 | 550 |
| 3x16 | 0.41 | 0.7 | 1.8 | 18.3 | 1.21 | 760 |
| 3x25 | 0.41 | 0.9 | 1.8 | 21.8 | 0.78 | 1100 |
| 3x35 | 0.41 | 0.9 | 1.8 | 24.3 | 0.554 | 1500 |
| 3x50 | 0.41 | 1 | 1.8 | 27.8 | 0.386 | 2050 |
5.Production Progress
6.Certificates:
 |
 |
7.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
