1.Application (Aerial Bundle Cables):
Aerial Bundle Cable for Power transmission, used for rebuilding of urban and forest regions, which can improve safety and reliance of electrified wire netting.
2.Standards (Aerial Bundle Cables):
BS7870, HD626, NF33, IEC228, IEC209, IEC60502
3.Cable Construction (Aerial Bundle Cables):

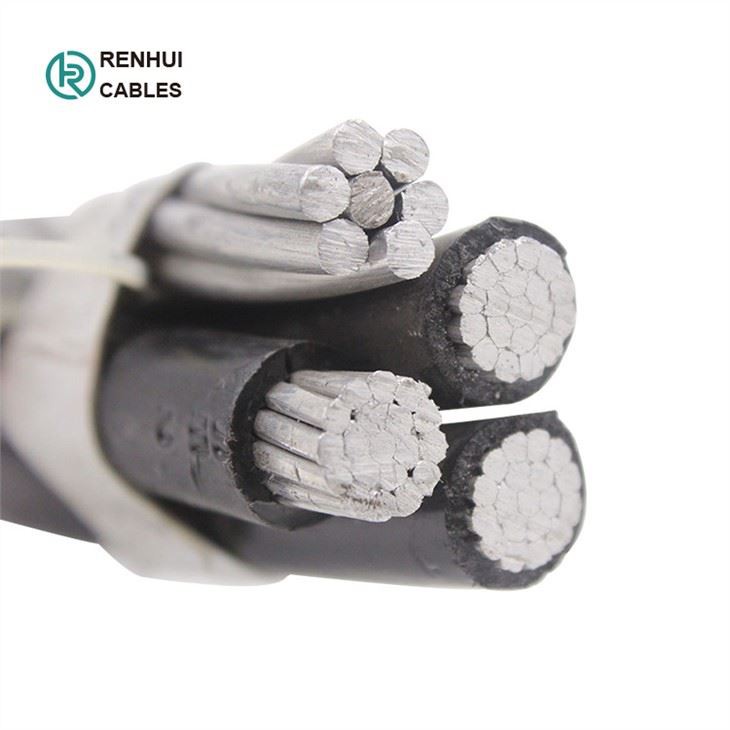

ABC Cable ( Aerial Bundled Cable ) are concentrically stranded EC Grade aluminum wires, insulated with either black weather resistant cross linked polyethylene (XLPE) or polyethylene (PE). The conductor insulation is marked with longitudinal ridges for phase identification.
4.Parameter (Aerial Bundle Cables):
ABC Cable ( Aerial Bundled Cable ) | ||||||
SPEC. mm² | Conductor Structure (Compacted AL) (No./mm) | Insulation Material | Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) | Packing Meters per Drum |
2x16 | 7/1.72 | XLPE (HDPE) | 1.2 | 14.6 | 131.4 | 250-4000m |
2x25 | 7/2.15 | 1.2 | 16.8 | 189 | 250-4000m | |
2x35 | 7/2.54 | 1.4 | 19.8 | 264.5 | 250-3500m | |
2x50 | 7/2.92 | 1.4 | 22.6 | 344.1 | 250-3000m | |
2x70 | 19/2.15 | 1.4 | 25.6 | 470 | 250-3000m | |
2x95 | 19/2.54 | 1.6 | 29.8 | 645.5 | 250-3000m | |
3x16 | 7/1.72 | 1.2 | 15.7 | 197.1 | 250-4000m | |
3x25 | 7/2.15 | 1.2 | 18.1 | 283.5 | 250-3500m | |
3x35 | 7/2.54 | 1.4 | 21.3 | 396.7 | 250-3500m | |
3x50 | 7/2.92 | 1.4 | 24.3 | 516.2 | 250-3000m | |
3x70 | 19/2.15 | 1.4 | 27.6 | 705.1 | 250-3000m | |
3x95 | 19/2.54 | 1.6 | 32.1 | 968.2 | 250-3000m | |
4x16 | 7/1.72 | 1.2 | 17.6 | 262.9 | 250-3500m | |
4x25 | 7/2.15 | 1.2 | 20.3 | 378 | 250-3500m | |
4x35 | 7/2.54 | 1.4 | 23.9 | 528.9 | 250-3000m | |
4x50 | 7/2.92 | 1.4 | 27.3 | 688.3 | 250-3000m | |
4x70 | 19/2.15 | 1.4 | 30.9 | 940.1 | 250-3000m | |
4x95 | 19/2.54 | 1.6 | 36 | 1291 | 250-3000m | |
ABC Cable ( Aerial Bundled Cable ) | |||||||
SPEC. mm² | Conductor Structure | Insulation Material | Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) | Packing Meters per Drum | |
Phase (Compacted AL) | Neutral(Alloy) | ||||||
(No./mm) | Aluminum (No./mm) | ||||||
1x16+1x16 | 7/1.72 | 7x1.72 | XLPE (HDPE) | 1.2 | 12.5 | 110.1 | 250-4000m |
1x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | 250-4000m | |
1x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229 | 250-3500m | |
1x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300 | 250-3000m | |
1x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | 250-3000m | |
1x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | 250-3000m | |
2x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | 250-4000m | |
2x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | 250-3500m | |
2x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | 250-3500m | |
2x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | 250-3000m | |
2x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | 250-3000m | |
2x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | 250-3000m | |
3x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | 250-3500m | |
3x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | 250-3500m | |
3x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | 250-3000m | |
3x50+1x50 | 7/2.92 | 7/2.94 | 1.4 | 25.7 | 644.1 | 250-3000m | |
3x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | 250-3000m | |
3x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | 250-3000m | |
5.Package: Export wooden drums (Aerial Bundle Cables):
