1. 3X1X150MM2 Alu 18/30kV HTA Cable
HTA cables are suitable for MV power applications,particularly for connections in transformer stations andpower stations, between aerial lines and transformer stationsand for automotive electric powertrain.
 |
 |
 |
2.Standards :NFC 33 226

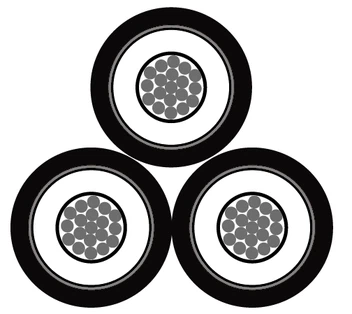

3.Cable Construction : HTA Cable
 |
 |
| Conductor: Class 2 Aluminium stranded wire Conductor Screen: Semi-conductive XLPE (Cross-linked Polyethylene) bonded to conductor Insulation: XLPE (Cross-linked polyethylene) Insulation Screen: Grooved peelable semi-conducting XLPE (Cross-linked Polyethylene) Tightness powder in the grooves Screen: Al/PET (Aluminium foil tape) Outer Sheath:PE (Polyethylene) |
|
4.Characteristics: HTA Cable
Rated Voltage: 18/30kv
Rated Temperature:
Operating temperature: +90ºC
Short Circuit: +250 °C
Minimum Bending Radius
Single core: 13 x overall diameter
During Installation: 26 x overall diameter
Multicore: 6 x overall diameter
During Installation: 12 x overall diameter
5.Production Progress
6.Certificates:
 |
 |
7.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
As per cable length and container size
In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
-Shipping Port:
Qingdao, or other ports as per your requireents.
-Sea freight:
FOB/C&F/CIF quotation are all available.
 |
 |
 |
