Cu/xlpe/pvc/swa/pvc

Name: China Cu/xlpe/pvc/swa/pvc - Cu/xlpe/pvc/swa/pvc Manufacturers, Suppliers, Factory - RENHUI
Brand: Renhui
SKU: 203885242

steel wire armoured cable 0.6/1kV power cable may be used for fixed installation indoors and outdoors in cable ducts or directly in the ground. The steel wire armoured cable (SWA Cable) is the accepted standard for underground installations, designed for use in mains supply electricity. These cables are provided with mechanical protection and are therefore suitable for external use, direct burial and areas where sudden mechanical stress are expected.

Send Inquiry

Chat Now

Download Catalog

CE Certificate-Renhui

ISO9001-Renhui

Description

1.Product name: cu/xlpe/pvc/swa/pvc

Cu/XLPE/PVC/SWA/PVC power cable may be used for fixed installation indoors and outdoors in cable ducts or directly in the ground.

The steel wire armoured cable (SWA Cable) is the accepted standard for underground installations, designed for use in mains supply electricity.

These cables are provided with mechanical protection and are therefore suitable for external use, direct burial and areas where sudden mechanical stress are expected.

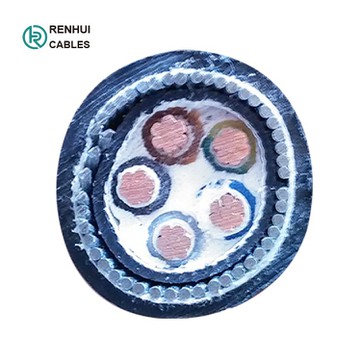

2.The drawing of cu/xlpe/pvc/swa/pvc

3.Cable details:cu/xlpe/pvc/swa/pvc

Conductor Material:	Copper, IEC60228
Conductor :	Solid or Stranded copper conductor
Insulation:	XLPE (Cross-linked Polyethylene), IEC60502-1
Armour Type:	Galvanized steel wires armoured
Outer Sheath:	PVC, IEC60502-1
Inner Sheath:	PVC, IEC60502-1
Sheath Colour:	Black
Lead Free:	Yes
Rated Voltage Uo/U (Um):	600/1000V
Installation Temperature:	Minimum: 0°c Maximum: 60°C
Installation Type:	Outdoor Direct burial
Operating Temperature:	Maximum: 90°C
Short-circuit Maximum Conductor Temperature:	250°C
Flame Retardant:	IEC 60332-1

4.Datasheet of cu/xlpe/pvc/swa/pvc

Cross section mm2	Stranding mm	Approx weight kg/km	Approx overall diameter	Gland size mm	Single cleat	Nom. Max. DC-resist conductor 20℃ ohm/km	Current rating laid direct amp
2 Core SWA : Brown & Blue
2 x 1.5	7/0.53	243	11.06	16	0.5	12.10	38
2 x 2.5	7/0.67	355	12.4	20s	0.5	7.41	49
2 x 4.0	7/0.85	393	13.38	20s	0.6	4.61	65
2 x 6.0	7/1.04	450	14.38	20	0.6	3.08	81
2 x 10	7/1.35	590	16.18	20	0.7	1.83	109
2 x 16	7/1.70	897	19.06	25	0.8	1.15	141
2 x 25	7/2.14	1,050	20.0	25	0.8	0.727	183
2 x 35	7/2.52	1,400	23.2	32	0.9	0.524	219
2 x 50	19/1.78	1,750	25.1	32	1.0	0.387	259
2 x 70	19/2.14	2,200	28.5	32	1.2	0.268	317
2 x 95	19/2.52	3,100	32.9	32	1.4	0.193	381
2 x 120	37/2.03	3,700	35.1	40	1.4	0.153	433
2 x 150	37/2.25	4,350	37.8	40	1.6	0.124	485
2 x 185	37/2.52	5,700	44.7	50s	1.8	0.0991	547
2 x 240	61/2.25	7,280	49.0	50	2.0	0.0754	632
2 x 300	61/2.52	8,750	53.4	63s	2.0	0.0601	708
2 x 400	61/2.85	10,700	59.0	63s	TC9	0.0470	-
3 Core SWA : Brown, Black & Grey
3 x 1.5	7/0.53	341	12.17	16	0.5	12.10	32
3 x 2.5	7/0.67	374	13.55	20s	0.6	7.41	42
3 x 4.0	7/0.85	458	14.68	20s	0.6	4.61	55
3 x 6.0	7/1.04	558	15.87	20	0.7	3.08	69
3 x 10	7/1.35	841	18.63	20	0.8	1.83	92
3 x 16	7/1.70	1,070	20.78	25	0.9	1.15	119
3 x 25	7/2.14	1,625	24.9	32	1.0	0.727	152
3 x 35	7/2.52	1,950	27.8	32	1.1	0.524	182
3 x 50	19/1.78	2,300	28.0	32	1.2	0.387	217
3 x 70	19/2.14	3,075	32.2	32	1.4	0.268	266
3 x 95	19/2.52	4,225	37.0	40	1.6	0.193	319
3 x 120	37/2.03	5,100	40.2	50s	1.8	0.153	363
3 x 150	37/2.25	6,510	45.3	50s	1.8	0.124	406
3 x 185	37/2.52	7,845	49.5	50	2.0	0.0991	458
3 x 240	61/2.25	9,900	55.6	63s	TC9	0.0754	529
3 x 300	61/2.52	13,560	59.6	63	TC10	0.0601	592
3 x 400	61/2.85	14,720	65.8	75s	TC11	0.0470	667
4 Core SWA: Brown, Black, Grey & Blue
4 x 1.5	7/0.53	351	12.88	20s	0.5	12.10	32
4 x 2.5	7/0.67	429	14.43	20s	0.6	7.41	42
4 x 4.0	7/0.85	538	16.87	20	0.6	4.61	55
4 x 6.0	7/1.04	670	17.87	20	0.7	3.08	69
4 x 10	7/1.35	998	20.1	25	0.8	1.83	92
4 x 16	7/1.70	1,272	22.4	25	0.9	1.15	119
4 x 25	7/2.14	1,940	27.0	32	1.0	0.727	152
4 x 35	7/2.52	2,390	30.1	32	1.2	0.524	182
4 x 50	19/1.78	2,925	31.5	32	1.4	0.387	217
4 x 70	19/2.14	4,200	37.4	40	1.6	0.268	266
4 x 95	19/2.52	5,355	40.9	50s	1.8	0.193	319
4 x 120	37/2.03	6,925	46.6	50	2.0	0.153	363
4 x 150	37/2.25	8,200	50.2	50s	2.0	0.124	406
4 x 185	37/2.52	9,975	55.8	63s	TC9	0.0991	458
4 x 240	61/2.52	12,700	62.5	63	TC10	0.0754	529
4 x 300	61/2.85	15,275	67.4	75s	TC11	0.0601	592
4 x 400	61/3.20	19,875	77.0	75	TC12	0.0470	667
5 Core SWA: Brown, Black, Grey , Blue,Yellow&green
5 x 1.5	7/0.53	395	13.72	20s	0.6	12.10	32
5 x 2.5	7/0.67	497	15.46	20s	0.6	7.41	42
5 x 4.0	7/0.85	674	17.38	20	0.7	4.61	55
5 x 6.0	7/1.04	868	19.05	20	0.8	3.08	69
5 x 10	7/1.35	1,197	22.06	25	0.9	1.83	92
5 x 16	7/1.70	1,780	24.14	25	1.1	1.15	119
5 x 25	7/2.14	2,435	28.4	32	1.2	0.727	152
5 x 35	7/2.52	2,800	33	40	1.4	0.524	182
5 x 50	19/1.78	3,850	38.0	40	1.6	0.387	217
5 x 70	19/2.14	5,100	42.9	50s	1.8	0.268	266
5 x 95	19/2.52	7,700	52.1	50	TC9	0.193	319
7 Core SWA : White Numbered Cores with Black Print
7 x 1.5	7/0.53	449	14.65	20	0.6	12.10	32
7 x 2.5	7/0.67	564	16.53	20	0.8	7.41	42
7 x 4.0	7/0.85	824	18.96	25	0.8	4.61	55
7 x 6.0	7/1.04	1,105	21.6	25	0.9	3.08	69
7 x 10	7/1.35	1,610	25.3	25	1	1.83	98
7 x 16	7/1.70	2,225	28.45	32	1.2	1.15	119
7 x 25	7/2.14	3,880	38.4	40	1.4	0.727	152
12 Core SWA : White Numbered Cores with Black Print
12 x 1.5	7/0.53	756	18.9	25	0.8	12.10	32
12 x 2.5	7/0.67	971	21.76	25	0.9	7.41	42
12 x 4.0	7/0.85	1,403	25.97	32	1.0	4.61	55
12 x 6.0	7/1.04	1,910	28.1	32	1.2	3.08	69
12 x 10	7/1.35	2,590	32.4	32	1.4	1.83	98
19 Core SWA : White Numbered Cores with Black Print
19 x 1.5	7/0.53	992	21.99	25	0.9	12.10	32
19 x 2.5	7/0.67	1,447	25.63	25	1.0	7.41	42
19 x 4.0	7/0.85	1,870	28.46	32	1.1	4.61	55

5.Package: Export wooden drums.
